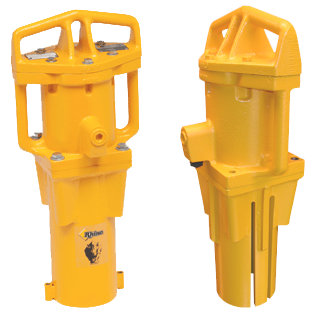

Rhino PD-140 Air Post Driver

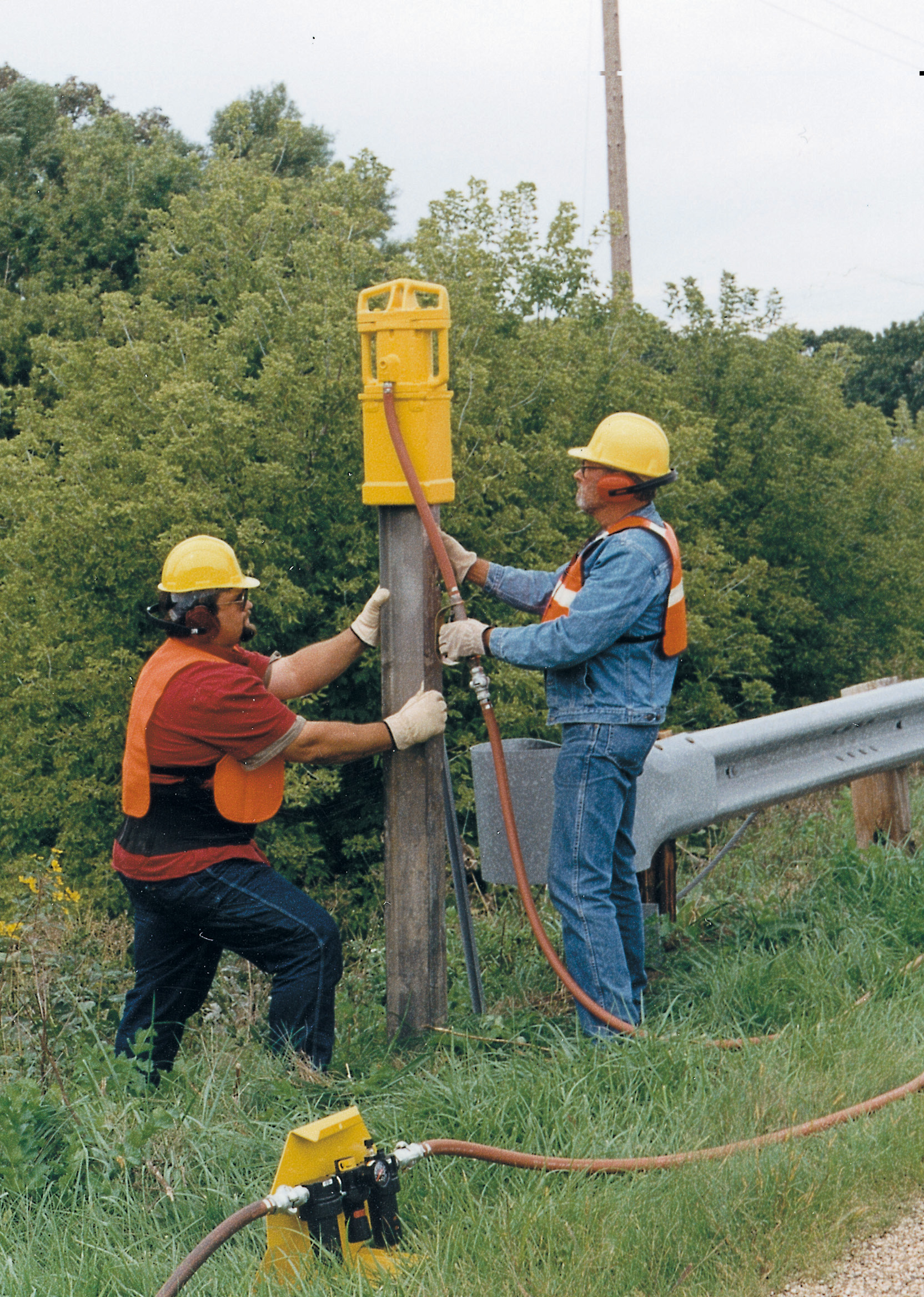

The PD-140 is a power performer. Often referred to as the guard rail driver, the PD-140 is fully capable of driving posts that competitive systems simply cannot. No other system strikes the balance between investment and return as does the PD-140. Thanks to the 4" piston and 139lb ductile iron casting body, the PD-140 is ideally suited to drive guard rail posts, heavy line posts, corner posts, gate posts, baseball backstops, dock piles, pin piles, foundation piles, wood posts, concrete posts, heavy gauge aluminum posts, well points, well casing and fence posts from 2" to 4" in diameter.
- Made in U.S.A.
Get a Kit
- Contains all essential tools for the job
- Makes transportation easy
- Preserve warranty with Filter-Lubricator
- See All Kits Below
PD-140 Post Drivers
| Part | Description | Price |
|---|---|---|
| 70015 | PD-140 Heavy Duty Post Driver Includes a 4-1⁄4" ID master chuck |
$3,300.00 Add |

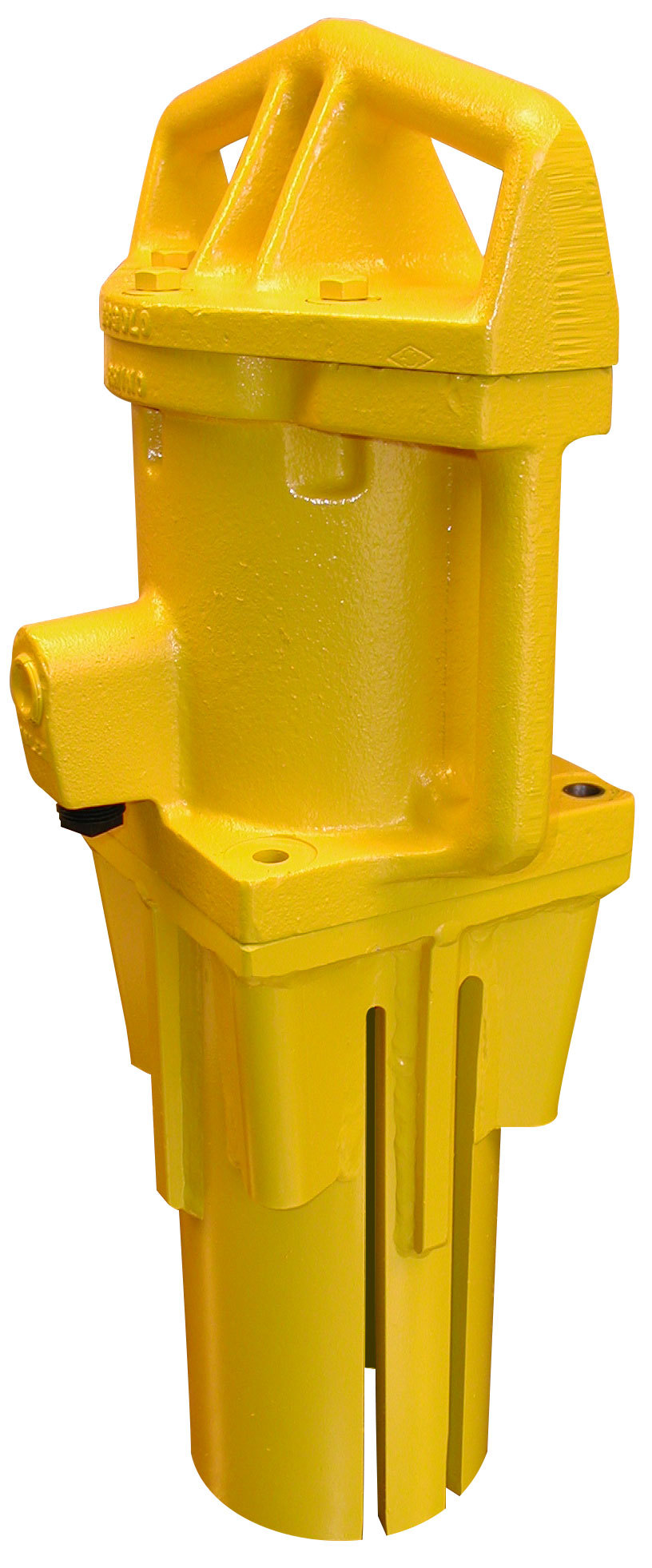

| 70017 | PD-140S Heavy Duty Sheet Pile Driver Includes Slotted Master Chuck |
$3,657.00 Add |
| 70582 | PD-140 4"x6" Guard Rail Post Driver 4x6" Master Chuck (to be used with 4x6" Drive Cap #70062) |
$3,478.00 Add |
Accessories and Adaptors
| Part | Description | Price |
|---|---|---|
| 600000 | Throttle Valve Kit with 5' hose whip* | $400.00 Add |
| 71199 | 15'-2" Hose Whip Assembly | $146.56 Add |
| 601128 | Filter-Regulator-Lubricator* For operator safety and post driver protection |
$416.78 Add |
| 225001 | Carrier for Filter-Regulator-Lubricator* | $208.39 Add |
| 225005 | Filter-Regulator-Lubricator and Carrier pre-assembled Both 225001 and 601128 |
$654.94 Add |
| 70634 | 3-5⁄8" ID Chuck Adapter | $238.16 Add |
| 70635 | 3" ID Chuck Adapter | $238.16 Add |
| 70636 | 2-1⁄2" ID Chuck Adapter | $238.16 Add |
| 70637 | 2" ID Chuck Adapter | $238.16 Add |
| Channel Post Chuck Adapters Click here for inside dimensions |
||
| 70640 | 1.2-1.5 lbs/ft Posts | $238.16 Add |
| 70641 | 2.0-2.75 lbs/ft Posts | $238.16 Add |
| 70642 | 3.0-4.0 lbs/ft Posts | $238.16 Add |
* Required for operation

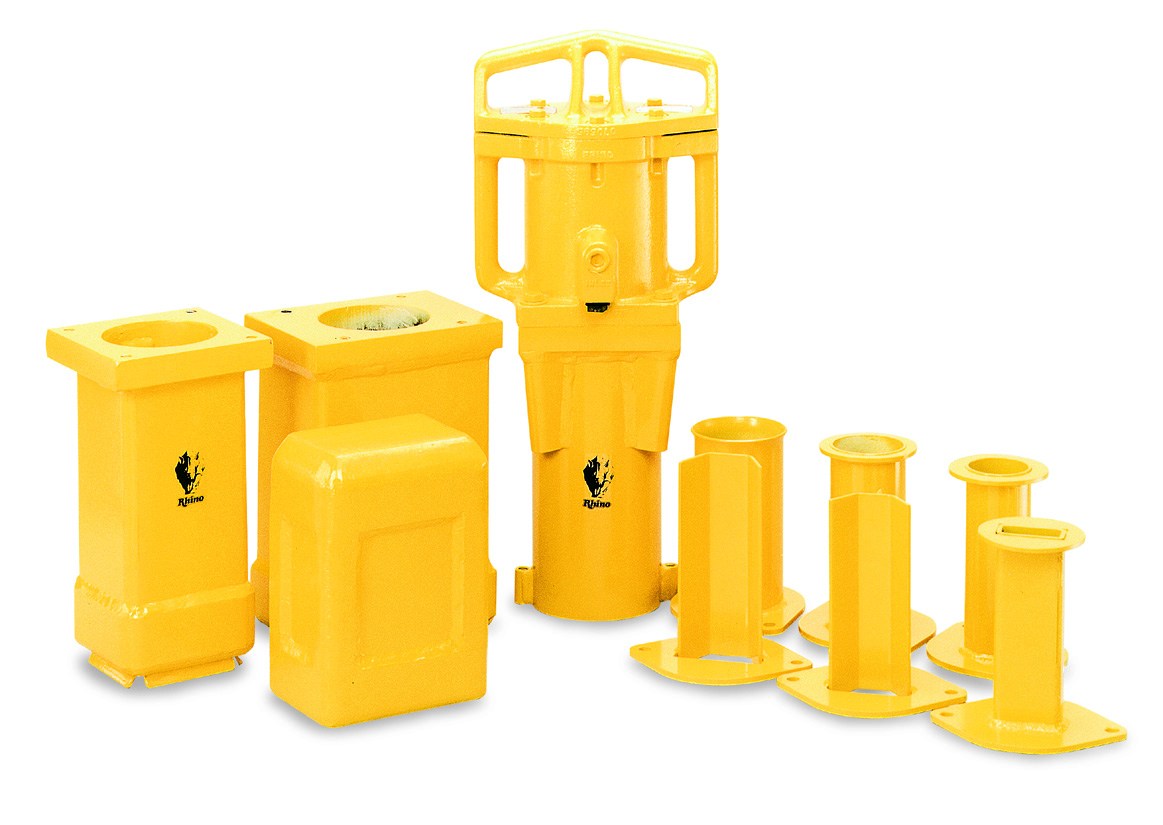

Post Driver Chucks
| Part | Description | Price |
|---|---|---|
| 70594 | PD-140 4-1/4" ID Master Chuck | $938.90 Add |
| 70061 | 4" x 6" H Column Chuck (chuck size: 5-7⁄8" x 7-5⁄8") | $950.35 Add |
| 70063 | 4" x 4" Wood Post Chuck (chuck size: 4-1⁄16" x 4-1⁄16") | $950.35 Add |
| 70597 | PD 140 Slotted Sheet Pile Master Chuck (.31 & .50 slots) | $1,188.51 Add |
| 71100 | 4" x 6" PD 140 Wood Master Chuck Assembly | $1,311.03 Add |
| 70644 | PD-140S 4-3⁄4" Round Master Chuck | $934.32 Add |
| 70762 | Custom Master Chuck Assembly | QUOTE Add |
Miscellaneous Accessories
| Part | Description | Price |
|---|---|---|
| 70757 | PD-200 Conversion Kit - Includes 6 Cap Screws (500031); 12 Washers (517705), 1 O-Ring (499403) and 1 PD 200 Cover Riser (70755) | $642.00 Add |
| 71203 | Transport Cart | $928.60 Add |
| 607000 | Hose Assembly 3⁄4" and up to 25' Hose. Includes assembly, labor and all parts EXCEPT hose. Add $3.50 per foot for length of hose needed |
$72.14 Add |
| 605006 | 3⁄4" Extra Hose Price per foot |
$4.52 Add |
| 100048 | Air Hose Assembly - 100' x 3⁄4" | $489.90 Add |

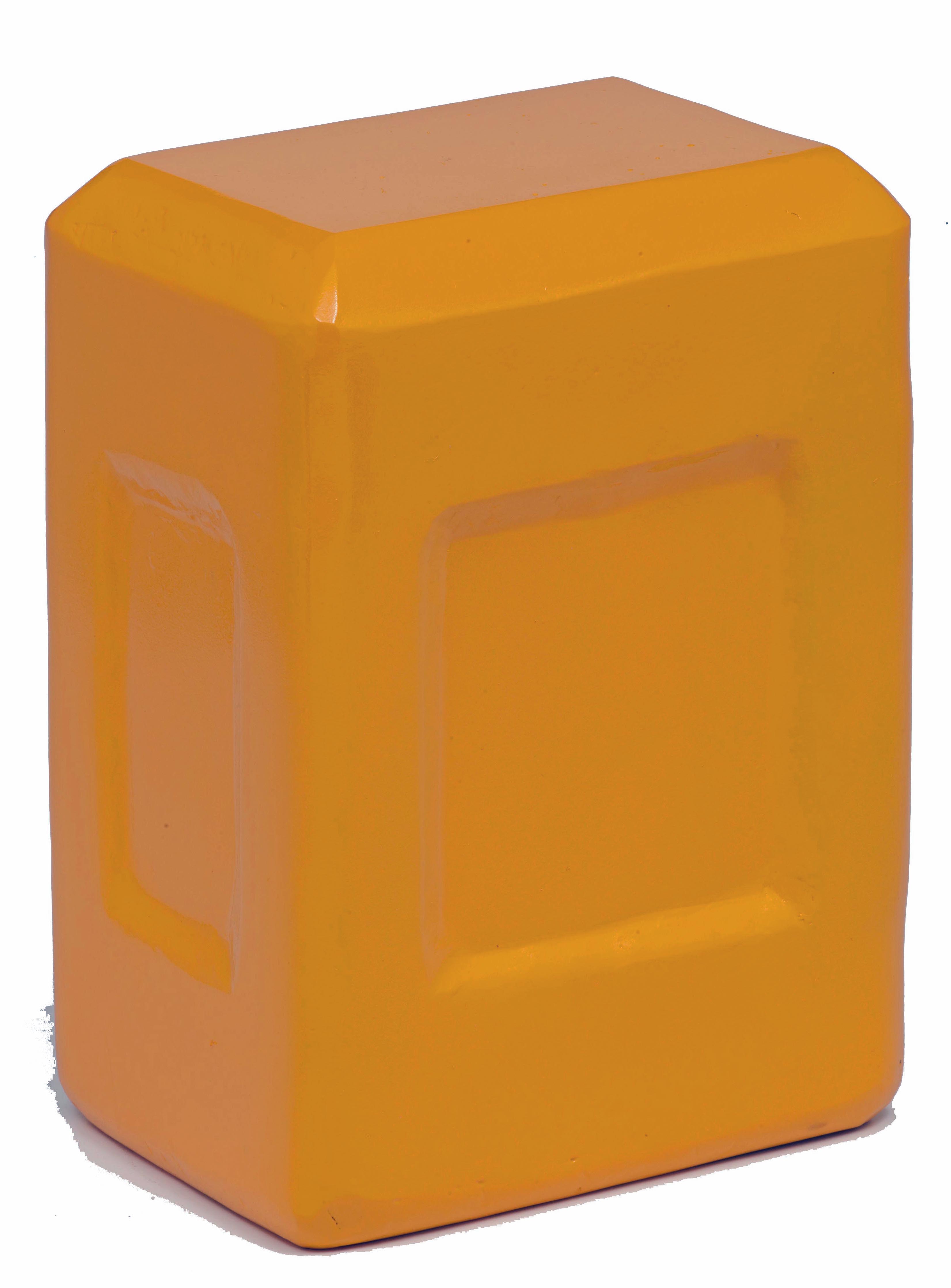

| 70062 | 4" x 6" H Column Driving Cap (chuck size: 4-1⁄4" x 6-1⁄4") | $1,024.78 Add |
| 71015 | PD-140 Chuck Adapter for Square Low Drive Extension | $272.51 Add |
| 71004 | 1-1⁄4" Low Drive Extension Drive Cap for Square Breakaway Bases 1" Pin | $409.91 Add |
| 71005 | 1-1⁄2" Low Drive Extension Drive Cap for Square Breakaway Bases 1-1⁄4" Pin | $409.91 Add |
| 71006 | 1-3⁄4" Low Drive Extension Drive Cap for Square Breakaway Bases 1-1⁄2" Pin | $409.91 Add |
| 71007 | 2" Low Drive Extension Drive Cap for Square Breakaway Bases 1-3⁄4" Pin | $409.91 Add |
| 71008 | 2-1⁄4" Low Drive Extension Drive Cap for Square Breakaway Bases 2" Pin | $409.91 Add |
| 71009 | 2-1⁄2" Low Drive Extension Drive Cap for Square Breakaway Bases 2-1⁄4" Pin | $409.91 Add |
| 71260 | 2" Drive Cap for Schedule 40 Pipe with T-Bar and Clip | $303.43 Add |
| 71261 | 2-1⁄2" Drive Cap for Schedule 40 Pipe with T-Bar and Clip | $303.43 Add |
| 71262 | 3" Drive Cap for Schedule 40 Pipe with T-Bar and Clip | $333.20 Add |
| 71263 | 3-1⁄2" Drive Cap for Schedule 40 Pipe with Slammer Hammer | $463.73 Add |
Kit Packages
 |
 |
 |
 |
 |
Rhino PD-140 Economy Kit
Simply the basics. This kit is designed to provide the simple requirements to begin post driving.
| Part Number | Description/Contents | Price |
|---|---|---|
| 71275 | Includes:
Typically $250-$500 LTL Shipping*
* LTL rates are currently volatile and vary widely depending on delivery conditions. We send all LTL shipments out for bid to logistics companies to find the best price and service. Shipping to Residential addresses will be higher.
|
$4,267.48 Add |
Rhino PD-140 Utility Kit
Designed to outfit a utility vehicle with the essential elements to allow crews to quickly and efficiently disembark a vehicle and perform required tasks.
| Part Number | Description/Contents | Price |
|---|---|---|
| 71279 | Includes:
Typically $250-$500 LTL Shipping*
* LTL rates are currently volatile and vary widely depending on delivery conditions. We send all LTL shipments out for bid to logistics companies to find the best price and service. Shipping to Residential addresses will be higher.
|
$5,349.73 Add |
Rhino PDT-140 Transport Kit
Full Kit Ready to Go. Transport your Driver, Chucks and Accessories. Choice of 2 Chuck Adaptors.
| Part Number | Description/Contents | Price |
|---|---|---|
| 71218 | Includes:
Typically $250-$500 LTL Shipping*
* LTL rates are currently volatile and vary widely depending on delivery conditions. We send all LTL shipments out for bid to logistics companies to find the best price and service. Shipping to Residential addresses will be higher.
* Chuck adapter selection is customizable. |
$5,351.85 Add |
Rhino PDT-140 Total Solution Kit
Full purpose transportable kit. Ready to tackle any job quickly. Choice of 2 Chuck Adaptors.
| Part Number | Description/Contents | Price |
|---|---|---|
| 71271 | Included
Typically $250-$500 LTL Shipping*
* LTL rates are currently volatile and vary widely depending on delivery conditions. We send all LTL shipments out for bid to logistics companies to find the best price and service. Shipping to Residential addresses will be higher.
* Chuck adapter selection is customizable. |
$6,937.23 Add |
Additional Available Kits
| Part Number | Description/Contents | Price |
|---|---|---|
| 71345 |
PD-140 Fence Post Kit Includes:
|
$4,226.53 Add |
| Part Number | Description/Contents | Price |
|---|---|---|
| 70017 |
PD-140S Heavy Duty Slotted Sheet Pile Post Driver Included
|
$3,657.00 Add |
| Part Number | Description/Contents | Price |
|---|---|---|
| 70017 |
PD-140G 4" x 6" Guard Rail Post Driver Included
|
$3,657.00 Add |
Specifications
Top Cover:
Ductile iron casting, high in strength and ductility has 1" (25.4 mm) diameter handles and chain loop designed into the cover for easy handling and carrying. O-Ring sealed.
Body:
Ductile iron casting, with excellent wear resistant characteristics. The air inlet is cast into the body and tapped with 3⁄4" NPT female threaded ports, along with 1" (25.4 mm) diameter side handles for easy handling. Chuck bolts pass through the lower body flange into tapped holes in the chuck mounting plate allowing special chucks to be made in a wide variety of shapes and sizes.
Piston:
4" - Alloy steel heat treated with a ground surface with hard chrome plate. Designed with 2 round valve ports to give better lubrication and load distribution to the valve ring while running.
Master Chuck:
The 4 1⁄4" (107.9 mm) I.D. master chuck is of an all welded, reinforced steel and tubing construction. The chuck is equipped with extra long chuck adapter attachment lugs.
Fasteners:
S.A.E.Grade 5 bolts with belleville lock washers. All fasteners are plated.
Throttle Valve:
Each unit includes a Rhino Stainless Steel Throttle Valve. The valve is equipped with a lever lock for safety.
Chuck Adapters:
Standard chuck adapters are available in the following sizes: 2 1⁄2" ( 63.5 mm) I.D., 3" (76.2 mm) I.D., 3 5⁄8" (92 mm) I.D. and three channel post chuck adapters for 1.2 to 1.5 lbs/ft, 2 to 2.75 lbs/ft and 3 to 4 lbs/ft posts. A chuck is available to drive 4" x 4" (101 mm x 101 mm) wood posts and a chuck and drive cap are available to drive 4" x 6" (101 mm x 152 mm) H column guard rail posts.
Air Consumption:
64 CFM (1.81 m3/min) @ 100 PSI (7 kg/cm2).
Weight:
139lbs.
Height:
25.75"
