TX00 Sand Rammer
The Texas Pneumatic rammers are proven in the field. They have a smooth-finished, black oxided body. They are tough, yet easy to handle. These rammers can be used various applications for foundry purposes, as well as construction-related areas.
Features:
- Made in USA
- High performance with minimum operator fatigue
- Easy start and stop features
- Lightweight rugged construction
- Adjustable packing gland
- Fast hitting
- Greatly improves the quality of casting in all types of foundry applications as well as packing sand, packing plastic alumnea in fire walls, and packing cast stone
Tool Applications:
- Packing sand
- Packing plastic alumnea in fire walls
- Packing cast stone
Includes 1-5⁄8" Rubber Butt. Hose Whip is not included.
SPECIFICATIONS
| TX00 | $470.00
|
|
| Air Consumption (cfm) | 12 | |
| Stroke (in) | 2 | |
| Weight (lb) | 4 | |
| Length, including butt (in) | 12 | |
| Bore (in) | 0.7 | |
| Blows per Minute | 1600 | |
| Taper | 401 | |
| Inlet | 3⁄8" | |
| Minimum Hose Size (in) | -- | |
| DOCUMENTATION |
|---|
| Spare Parts List |
| COMMON REPLACEABLE PARTS AND ACCESSORIES | ||
|---|---|---|
| Packing Assembly | TX001180 | $24.25
|

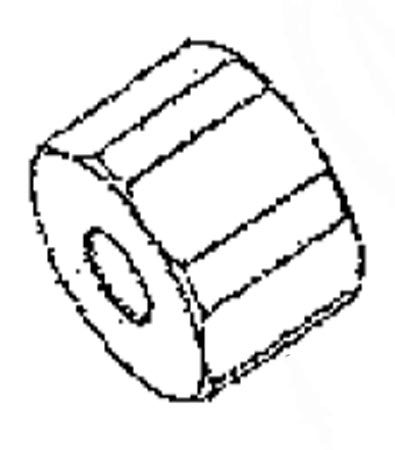

| Packing Gland Nut | TX001230 | $48.45
|
| Rubber Butt | TX002012 | $74.35
|
| Hose Whip Assembly | TX2HW | $86.65
|
