TX70B-NRLR Sand Rammer With Non-Revolving Piston & Long Reach Handle
The Texas Pneumatic rammers are proven in the field. They have a smooth-finished, black oxided body. They are tough, yet easy to handle. These rammers can be used various applications for foundry purposes, as well as construction-related areas.
Features:
- Made in USA
- High performance with minimum operator fatigue
- Easy start and stop features
- Lightweight rugged construction
- Adjustable packing gland
- Fast hitting
- Greatly improves the quality of casting in all types of foundry applications as well as packing sand, packing plastic alumnea in fire walls, and packing cast stone
Tool Applications:
- Packing sand
- Packing plastic alumnea in fire walls
- Packing cast stone
Includes 2-3⁄8" Aluminum Rubber Butt.
Hose Whip is not included.
SPECIFICATIONS
| TX70B-NRLR | $1,133.00
|
|
| Air Consumption (cfm) | 15 | |
| Stroke (in) | 2 | |
| Weight (lb) | 7 | |
| Length, including butt (in) | 16 | |
| Bore (in) | 1 | |
| Blows per Minute | 2500 | |
| Taper | 802 | |
| Inlet | 1⁄4" NPT | |
| Minimum Hose Size (in) | 3⁄8 | |
| DOCUMENTATION |
|---|
| Spare Parts List |
| COMMON REPLACEABLE PARTS AND ACCESSORIES | ||
|---|---|---|
| Repair Kit | TX70BRK | $143.00
|
| Packing | TX00930 | $26.10
|
| Packing Gland | TX00862 | $41.45
|

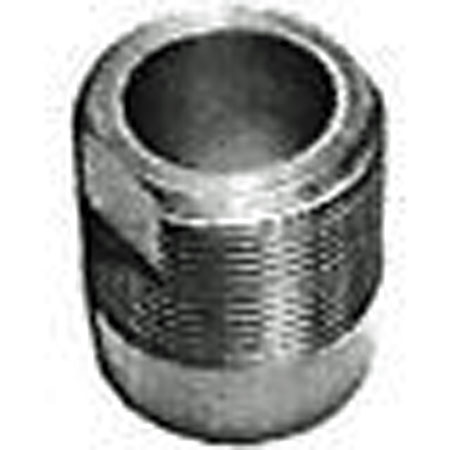

| Packing Gland Nut | TX00878 | $52.10
|
| 2-3⁄8" Aluminum Rubber Butt | TX00199 | $104.25
|
| 2-3⁄4" Open Hearth Butt | TX00208 | $125.10
|
| 2-3⁄8" All Aluminum Butt | TX00209 | $104.25
|
| 2-3⁄8" Neoprene Butt | TX00212 | $104.25
|
| 2-3⁄8" Neoprene Butt with Steel Insert | TX00212S | CALL |
| Hose Whip Assembly | TX1HW | $86.65
|
