The Rhino PD-200S Slotted Sheet Pile Post Driver Kit sets up the 170 lb PD-200 pneumatic driver for sheet pile from the first hit: the slotted master chuck lets the sheet pile pass through the chuck to engage the piston directly, driving soil-retention and seawall systems at up to 930 blows per minute. It is the sheet-pile configuration of the PD-200 post driver, packaged with its required air plumbing.

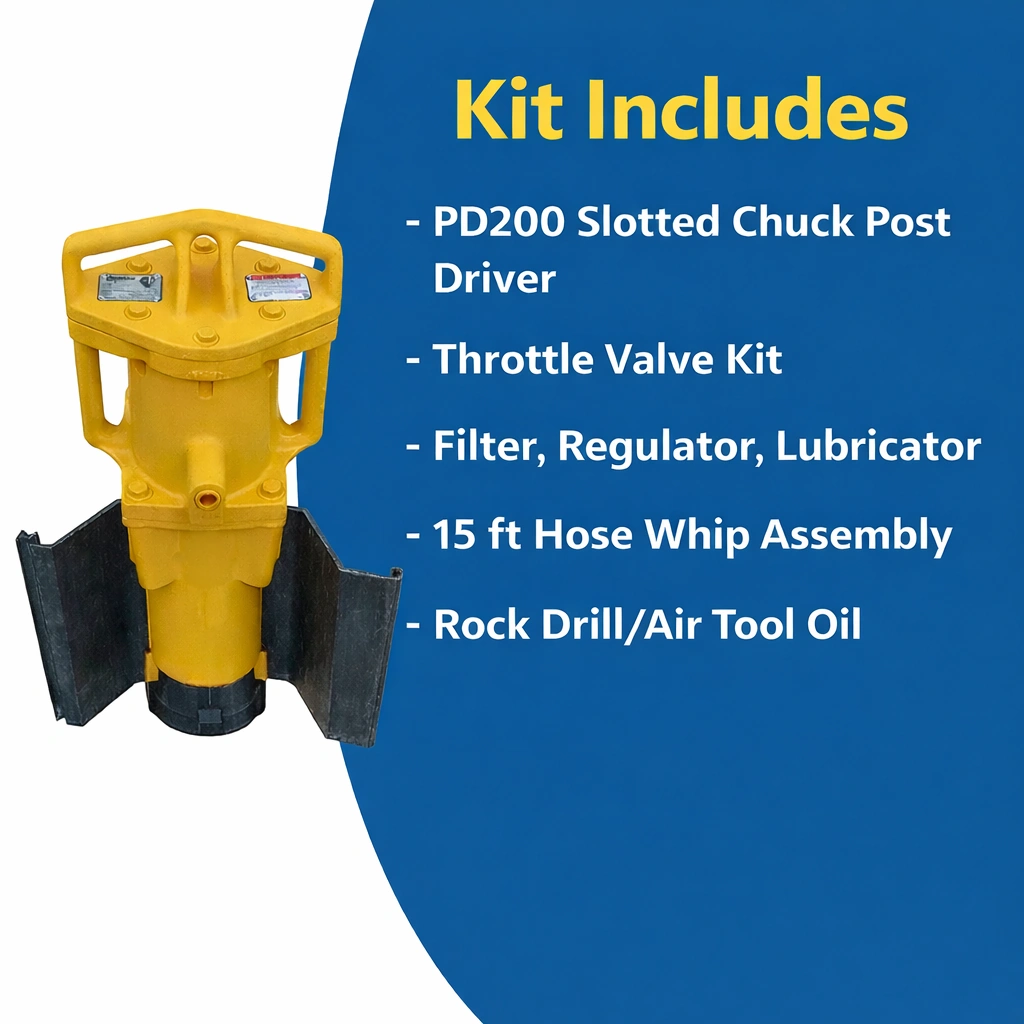

In the kit: the PD-200 with slotted master chuck, a throttle valve kit with 5 ft whip hose, a pre-assembled filter-regulator-lubricator with carrier and a 15 ft hose whip. Add a gallon of rock drill oil for the lubricator and the air side is complete. Alternative chucks extend the same driver to pipe up to 7 in., dock piles, guardrail posts and wood posts see all PD-200 kits or our full post driver range.

• PD-200 heavy-duty pneumatic driver with slotted master chuck for sheet pile 170 lb with alloy steel piston
• Up to 930 BPM for driving sheet pile in soil-retention and seawall systems
• Slotted chuck lets the sheet pile pass through to engage the piston directly
• Includes throttle valve kit with 5 ft whip hose, pre-assembled FRL with carrier, and 15 ft hose whip
• Optional chucks adapt the driver to pipe up to 7 in., dock piles, guardrail posts, and 4×6 and 6×6 wood posts
• Kit assembled and shipped by Crowder Supply in Denver

PD-200S Sheet Pile Kit FAQ

What can the PD-200S drive?
The slotted master chuck lets sheet pile pass through the chuck to engage the piston directly, driving soil-retention and seawall systems; bolt-on alternative chucks extend the same 170 lb driver to pipe up to 7 in., dock piles, guardrail posts and 4×6 or 6×6 wood posts.

What do I need to connect it to my compressor?
The air side ships in the kit: a throttle valve kit with 5 ft whip hose, a pre-assembled filter-regulator-lubricator with carrier and a 15 ft hose whip add a compressor and a gallon of rock drill oil for the lubricator and you are driving.

How is the PD-200S different from the standard PD-200?
It is the same 170 lb, up-to-930 BPM driver, factory-fitted with the slotted master chuck for sheet pile instead of the standard chuck; the rest of the Rhino pneumatic post driver line covers post and pile work in other weights.
