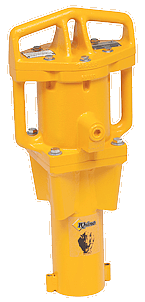

Rhino PD-110 Air Post Driver

rhino pd-110Smallest of the big drivers, the PD-110 is the perfect balance between a hand-held driver and an equipment-supported driver. At 109 pounds and with a 4" piston, the PD-110 is a powerhouse that will put tough jobs behind you and money in your pocket. The PD-110 is ideally suited for driving 2" to 4" pipe and tube, structural forms, pin piles, dock piles, and 4x4 wood.

  • Quality Construction - Reliable Driver
  • Made in U.S.A.
kit

Get a Kit

  • Contains all essential tools for the job
  • Makes transportation easy
  • Preserve warranty with Filter-Lubricator
  • See All Kits Below

PD-110 Post Drivers

Part Description Price
70014 PD-110 Medium/Heavy Duty Post Driver
Includes a 4-14" ID master chuck
$3,066.00 Add

Accessories and Adaptors

Part Description Price

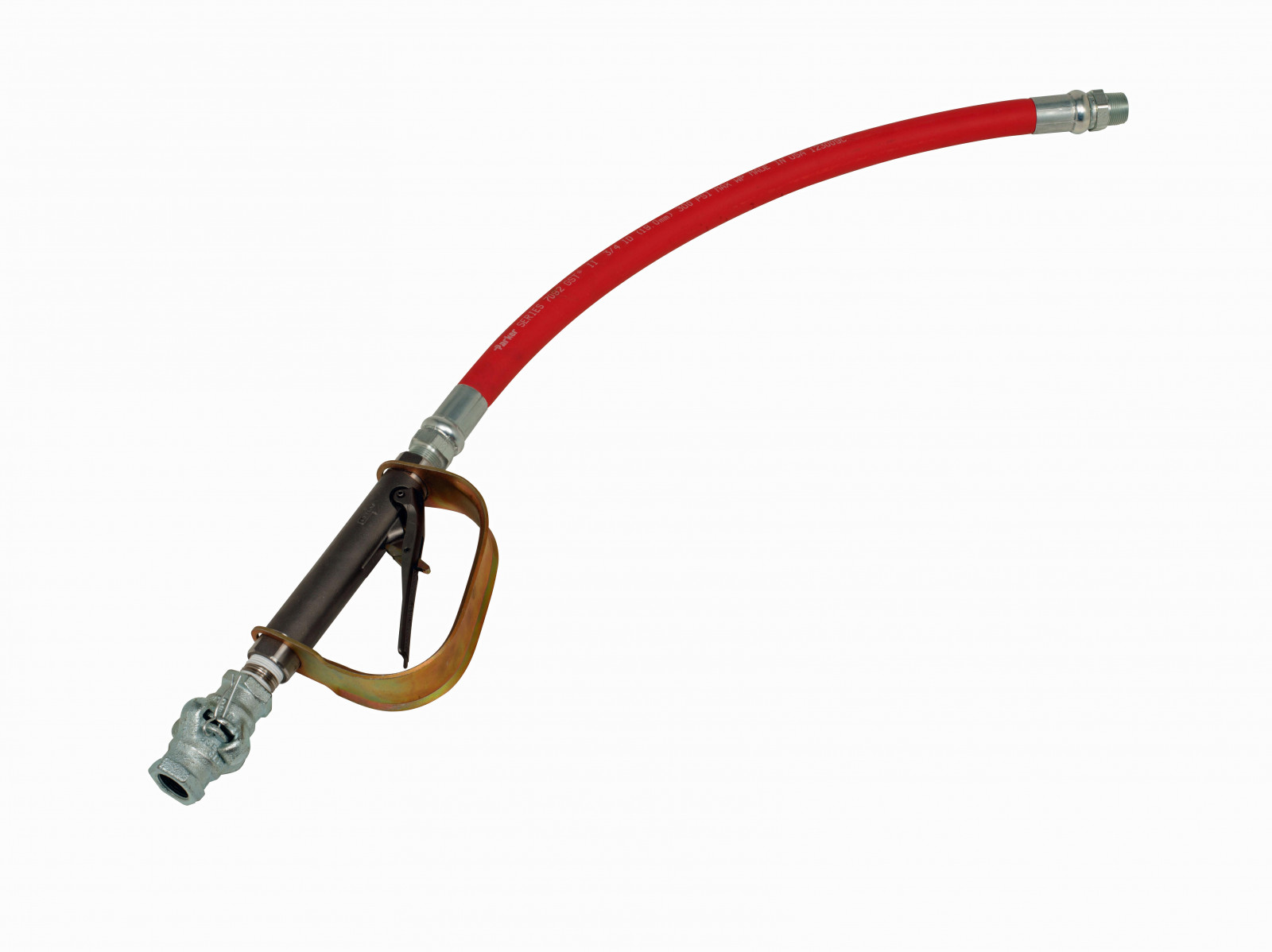

600000 Throttle Valve Kit with 5' hose whip* $400.00 Add

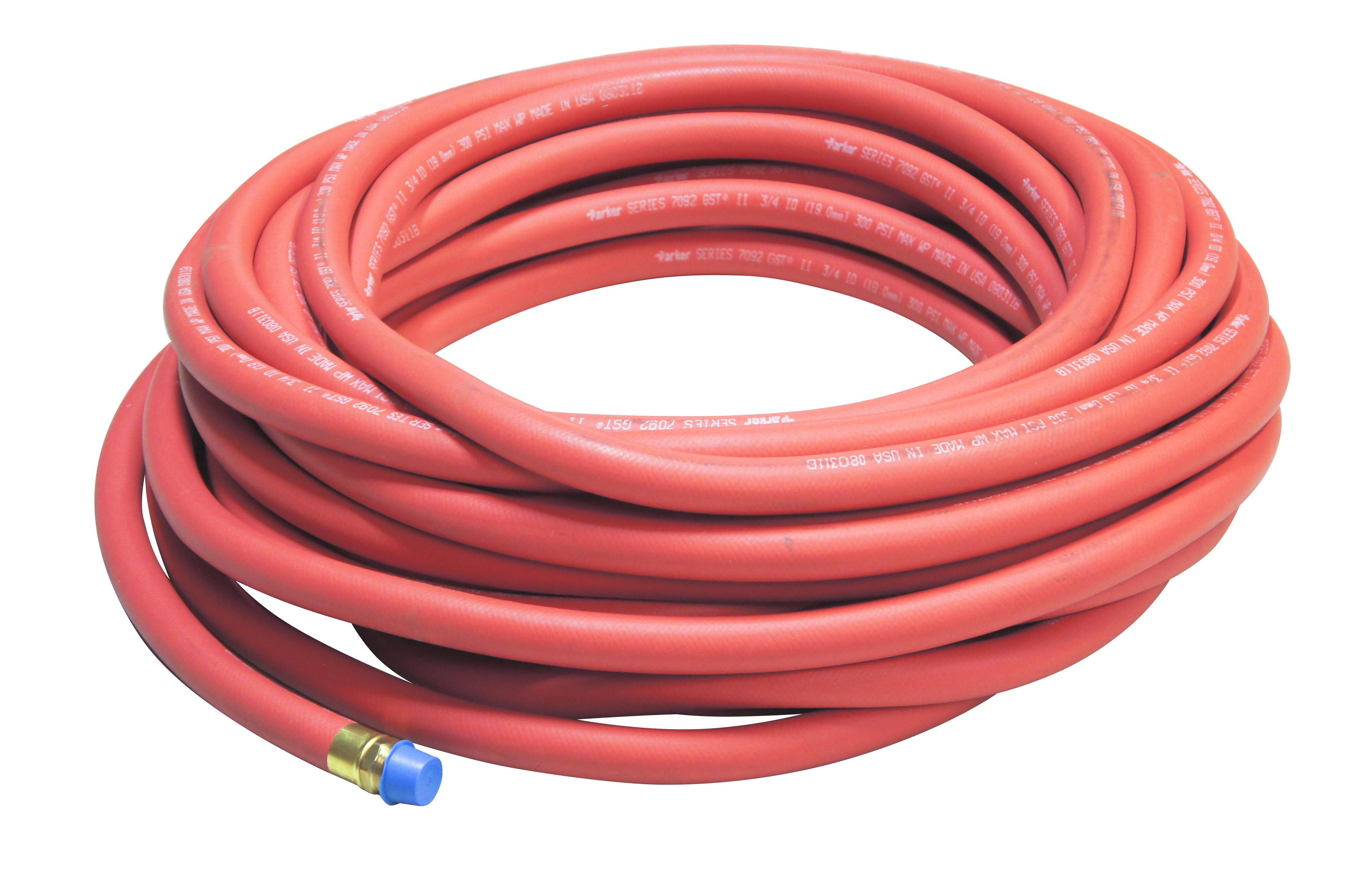

71199 15'-2" Hose Whip Assembly $146.56 Add

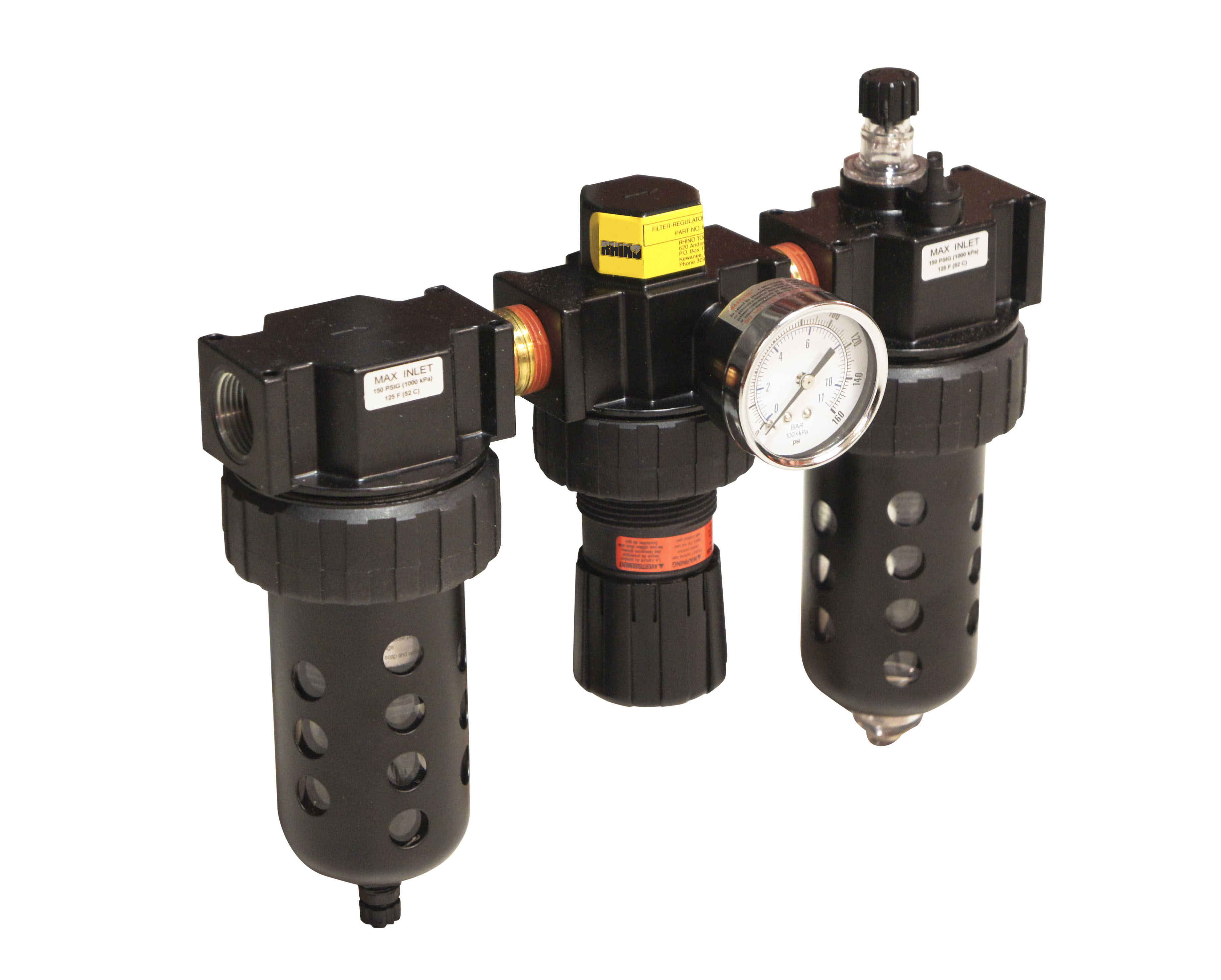

601128 Filter-Regulator-Lubricator*
For operator safety and post driver protection
$416.78 Add

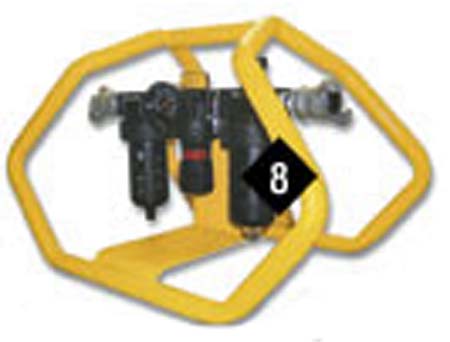

225001 Carrier for Filter-Regulator-Lubricator* $208.39 Add

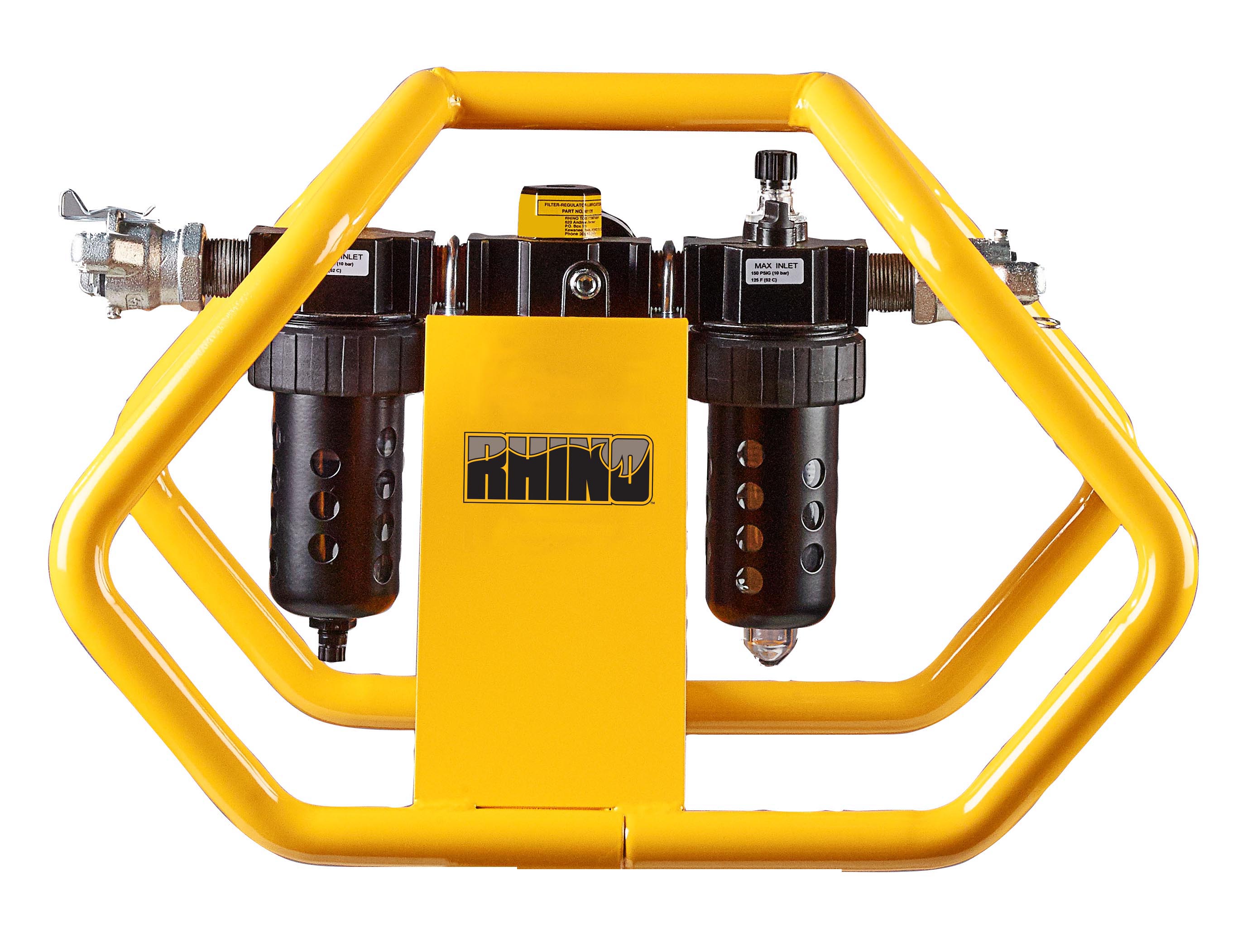

225005 Filter-Regulator-Lubricator and Carrier pre-assembled
Both 225001 and 601128
$654.94 Add
70622 3-58" ID Chuck Adapter $225.57 Add
70623 3" ID Chuck Adapter $225.57 Add
70624 2-12" ID Chuck Adapter $225.57 Add
70625 2" ID Chuck Adapter $225.57 Add

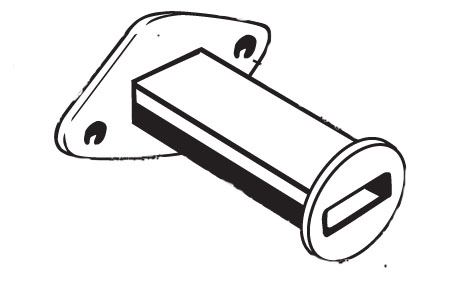

Channel Post Chuck Adapters
Click here for inside dimensions
70628 1.2-1.5 lbs/ft Posts $225.57 Add
70629 2.0-2.75 lbs/ft Posts $225.57 Add
70630 3.0-4.0 lbs/ft Posts $225.57 Add

* Required for operation

Post Driver Master Chucks

Part Description Price
70593 PD-110 4-1/4" ID Master Chuck $893.10 Add
70594 PD-140 4-1/4" ID Master Chuck $938.90 Add

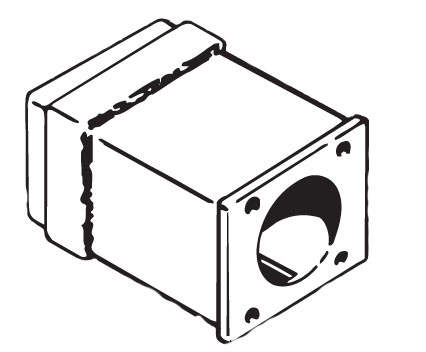

70061 4" x 6" H Column Chuck (chuck size: 5-78" x 7-58") $950.35 Add

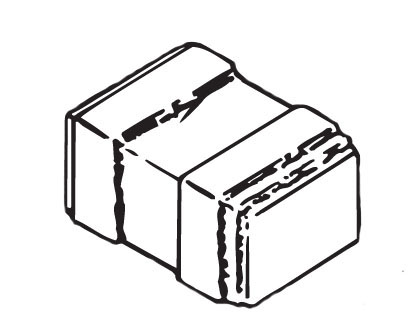

70063 4" x 4" Wood Post Chuck (chuck size: 4-116" x 4-116") $950.35 Add
70597 PD 140 Slotted Sheet Pile Master Chuck $1,188.51 Add
71100 4" x 6" PD 140 Wood Master Chuck Assembly $1,311.03 Add
70644 PD-140S 4-34" Round Master Chuck $934.32 Add
70061 4" x 6" PD 200 Master Chuck (Chuck Size 5-78" x 7-58") for the H-Column Guardrail Post System $950.35 Add
70762 Custom Master Chuck Assembly QUOTE Add

Miscellaneous Accessories

Part Description Price

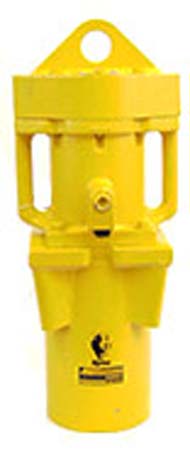

70757 PD-200 Conversion Kit - Includes 6 Cap Screws (500031), 12 Washers (517705), 1 O-Ring (499403) and 1 Cover Riser for PD-200 (70755) $642.00 Add
71202 Transport Cart $928.60 Add

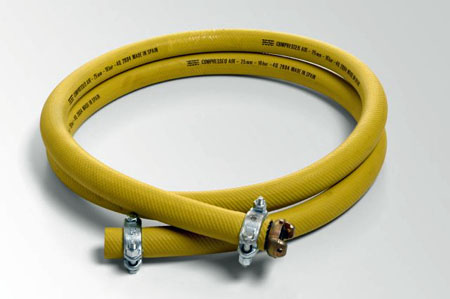

607000 Hose Assembly
34" and up to 25' Hose. Includes assembly, labor and all parts EXCEPT hose. Add $3.50 per foot for length of hose needed
$72.14 Add
605006 34" Extra Hose
Price per foot
$4.52 Add

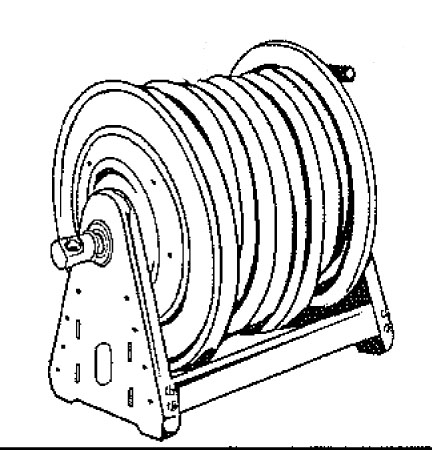

100048 Air Hose Assembly - 100' x 34" $489.90 Add
70847 PD 110 Chuck Adapter for the Channel Post Break-Away Anchor System $249.61 Add

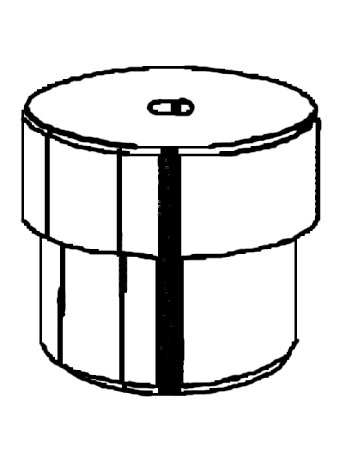

70836 Drive Cap for the Channel Post Break-Away Anchor System $409.91 Add
71017 PD-110 Chuck Adapter for Square Low Drive Extension $255.34 Add

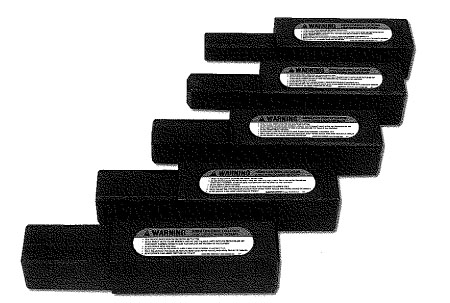

71004 1-14" Low Drive Extension Drive Cap for Square Breakaway Bases 1" Pin $409.91 Add
71005 1-12" Low Drive Extension Drive Cap for Square Breakaway Bases 1-14" Pin $409.91 Add
71006 1-34" Low Drive Extension Drive Cap for Square Breakaway Bases 1-12" Pin $409.91 Add
71007 2" Low Drive Extension Drive Cap for Square Breakaway Bases 1-34" Pin $409.91 Add
71008 2-14" Low Drive Extension Drive Cap for Square Breakaway Bases 2" Pin $409.91 Add
71009 2-12" Low Drive Extension Drive Cap for Square Breakaway Bases 2-14" Pin $409.91 Add
71260 2" Sch 40 Drive Cap with T-Bar and Clip $303.43 Add
71261 2-12" Sch 40 Drive Cap with T-Bar and Clip $303.43 Add
71262 3" Sch 40 Drive Cap with T-Bar and Clip $333.20 Add
71263 3-12" Sch 40 Drive Cap with Slammer Hammer $463.73 Add

Kit Packages

Rhino PD-110 Economy Kit

Simply the basics. This kit is designed to provide the simple requirements to begin post driving.

Part Number Description/Contents Price
71274 Includes:
  • 070014 - PD 110 Medium/Heavy Duty Post Driver
  • Choice of ONE Chuck Adaptor
  • 600000 - Throttle Valve Kit (inc. 5' Hose Whip)
  • 225005 - Filter Regulator Lubricator with Carrier (Pre-Assembled)
  • 071199 - 15'2" Hose Whip
  • RDO1G - Rock Drill Oil, 1 Gallon
  • Service & Operating Instructions
$4,280.03 Add

Rhino PD-110 Utility Kit

Designed to outfit a utility vehicle with the essential elements to allow crews to quickly and efficiently disembark a vehicle and perform required tasks.

Part Number Description/Contents Price
71278

Includes:

  • 070014 - PD 110 Medium/Heavy Duty Post Driver
  • Choice of ONE Chuck Adaptor
  • 600000 - Throttle Valve Kit (inc. 5' Hose Whip)
  • 225005 - Filter Regulator Lubricator with Carrier (Pre-Assembled)
  • 71012 - MP 3 Manual Post Puller
  • 1 Qt. Non-Detergent Oil
  • Service & Operating Instructions
$5,334.53 Add

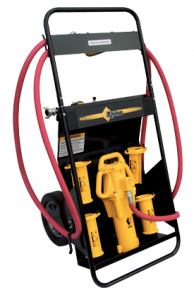

Rhino PDT-110 Transport Kit

Full Kit Ready to Go. Transport your Driver, Chucks and Accessories. Choice of 2 Chuck Adaptors.

Part Number Description/Contents Price
71217 Includes:
  • 070014 - PD 110 Medium/Heavy Duty Post Driver
  • Choice of TWO Chuck Adaptors (70611 2½" Chuck Adaptor and 70618 3 to 4 lb/ft Channel Post Adaptor standard)*
  • 600000 - Throttle Valve Kit (inc. 5' Hose Whip)
  • 225004 - Filter Regulator Lubricator with Carrier (Pre-Assembled)
  • 71202 - Transport Cart
  • 1 Qt. Non-Detergent Oil
  • Service & Operating Instructions



* Chuck adapter selection is customizable.

$5,348.55 Add

Rhino PDT-110 Total Solution

Full purpose transportable kit. Ready to tackle any job quickly. Choice of 2 Chuck Adaptors.

Part Number Description/Contents Price
71270 Includes:
  • 070014 - PD 110 Medium/Heavy Duty Post Driver
  • Choice of TWO Chuck Adaptors (70611 2½" Chuck Adaptor and 70618 3 to 4 lb/ft Channel Post Adaptor standard)*
  • 600000 - Throttle Valve Kit (inc. 5' Hose Whip)
  • 225004 - Filter Regulator Lubricator with Carrier (Pre-Assembled)
  • 71202 - Transport Cart
  • 71013 - MP 3 Manual Post Puller
  • 220422 - MP 3 Chain Assembly
  • 71040 - Post Grabber
  • 1 Qt. Non-Detergent Oil
  • Service & Operating Instructions



* Chuck adapter selection is customizable.

$6,881.32 Add

Additional Available Kits

Part Number Description/Contents Price
71344

PD-110 Fence Post Kit

Includes:

  • 070014 - PD 110 Medium/Heavy Duty Post Driver
  • 70623 - 3" ID Chuck Adaptor
  • 600000 - Throttle Valve Kit (inc. 5' Hose Whip)
  • 225005 - Filter Regulator Lubricator with Carrier (Pre-Assembled)
  • 071199 - 15'2" Hose Whip
  • RDO1G - Rock Drill Oil, 1 Gallon
  • Service & Operating Instructions
$4,240.13 Add



pd-110 in use

Specifications

Top Cover:
Ductile iron casting, high in strength and ductility has 1" (25.4 mm) diameter handles and chain loop designed into the cover for easy handling and carrying. O-Ring sealed.

Body:
Ductile iron casting, with excellent wear resistant characteristics. The air inlet is cast into the body and tapped with 34" NPT female threaded ports, along with 1" (25.4 mm) diameter side handles for easy handling. Chuck bolts pass through the lower body flange into tapped holes in the chuck mounting plate allowing special chucks to be made in a wide variety of shapes and sizes.

Piston:
4" - Alloy steel heat treated with a ground surface with hard chrome plate. Designed with 2 round valve ports to give better lubrication and load distribution to the valve ring while running.

Master Chuck:
The 4 14" (107.9 mm) I.D. master chuck is of an all welded, reinforced steel and tubing construction. The chuck is equipped with extra long chuck adapter attachment lugs.

Fasteners:
S.A.E.Grade 5 bolts with belleville lock washers. All fasteners are plated.

Throttle Valve:
Each unit includes a Rhino Stainless Steel Throttle Valve. The valve is equipped with a lever lock for safety.

Chuck Adapters:
Standard chuck adapters are available in the following sizes: 2" (50.8 mm) I.D., 2 12" ( 63.5 mm) I.D., 3" (76.2 mm) I.D., 3 58" (92 mm) I.D. and three channel post chuck adapters for 1.2 to 1.5 lbs/ft, 2 to 2.75 lbs/ft and 3 to 4 lbs/ft posts.

Air Consumption:
64 CFM (1.81 m3/min) @ 100 PSI (7 kg/cm2).

Weight:
116lbs.

Height:
25.75"
