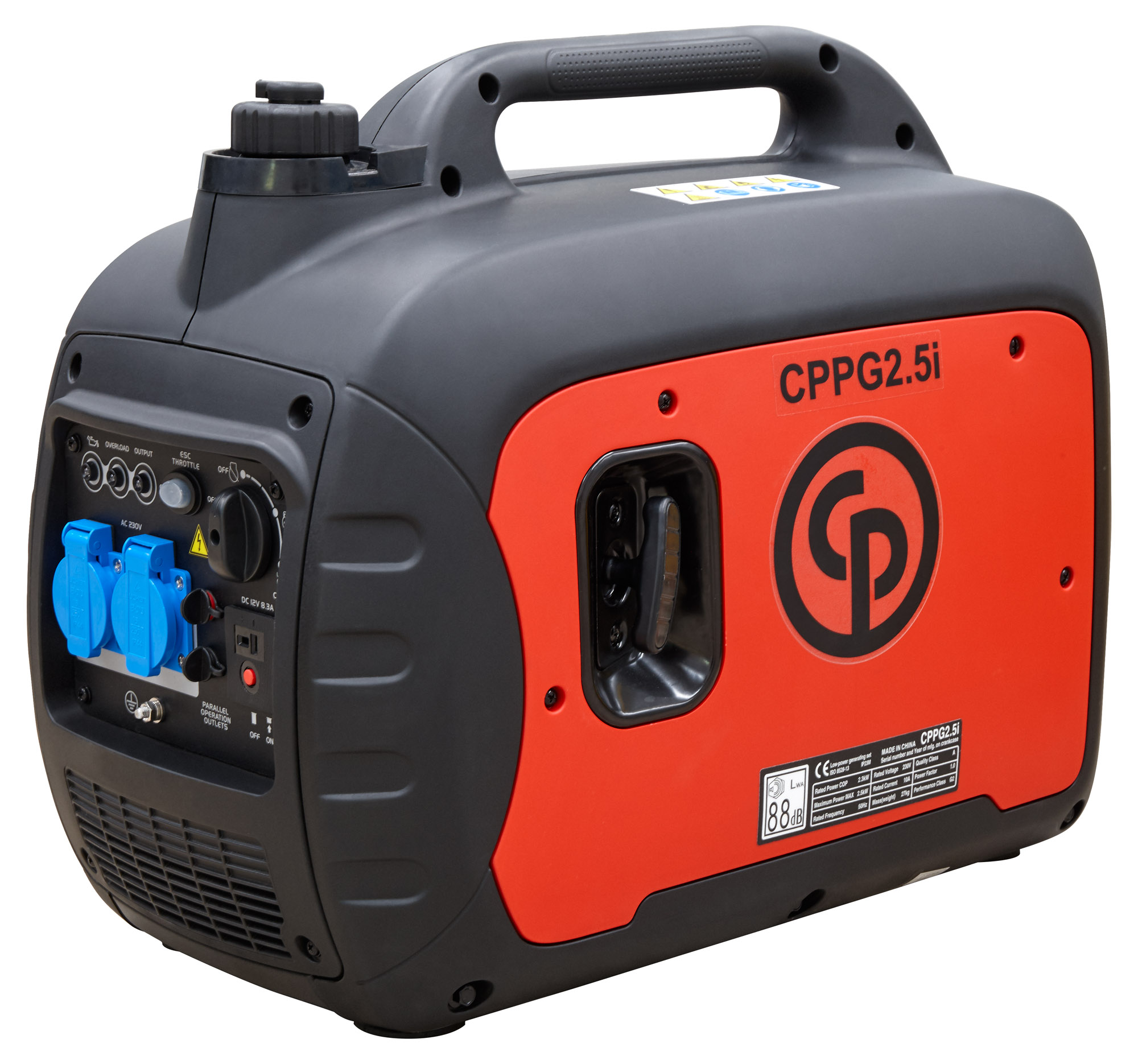

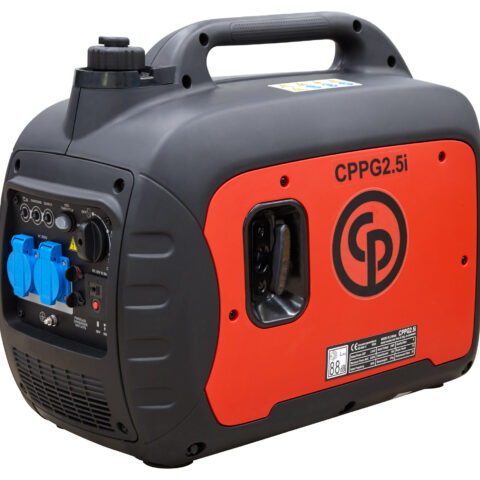

The CPPG2.5iW is a compact, recoil-start inverter generator delivering2,300 W rated / 2,500 W peakof clean 120 V power at just59.5 lbs. Inverter technology adapts engine speed to the load, so you get quieter operation, lower fuel burn and stable output for sensitive electronics. At63 dB(A) at 7 mit is jobsite-tough but quiet enough for campsites, tailgates and residential work. CARB and EPA Phase 3 compliant.
Specifications
| General | |
|---|---|
| Model | CPPG2.5iW |
| Part Number | 8170023374 |
| Generator Type | Gasoline inverter, portable |
| Power Output | |
| Rated (Running) Power | 2,300 W (2.3 kVA) |
| Peak (Surge) Power | 2,500 W (2.5 kVA) |
| Rated Voltage | 120 V |
| Rated Frequency | 60 Hz |
| Rated Current | 19.2 A @ 120 V |
| Power Factor (cos ) | 1.0 |
| Alternator Output | 2.3 kVA |
| Outlets | 2 x NEMA 120 V 20 A duplex | 1 x 120 V twist-lock |
| Engine | |
| Engine Model | CP165F |
| Fuel Type | Gasoline |
| Displacement | 149 cc |
| Engine Power | 3.2 kW (4.3 hp) |
| Nominal Speed | 3,600 rpm |
| Starting System | Recoil |
| Emissions Compliance | CARB & EPA Phase 3 |
| Fuel & Run Time | |
| Fuel Tank Capacity | 1.05 gal (4 L) |
| Run Time at Rated Load | 4 hours |
| Noise | |
| Sound Pressure (LpA @ 7 m) | 63 dB(A) |
| Sound Power (LwA) | 88 dB(A) |
| Dimensions & Weight | |
| Length | 22.25 in (565 mm) |
| Width | 13.35 in (339 mm) |
| Height | 18.39 in (467 mm) |
| Dry Weight | 59.5 lbs (27 kg) |
