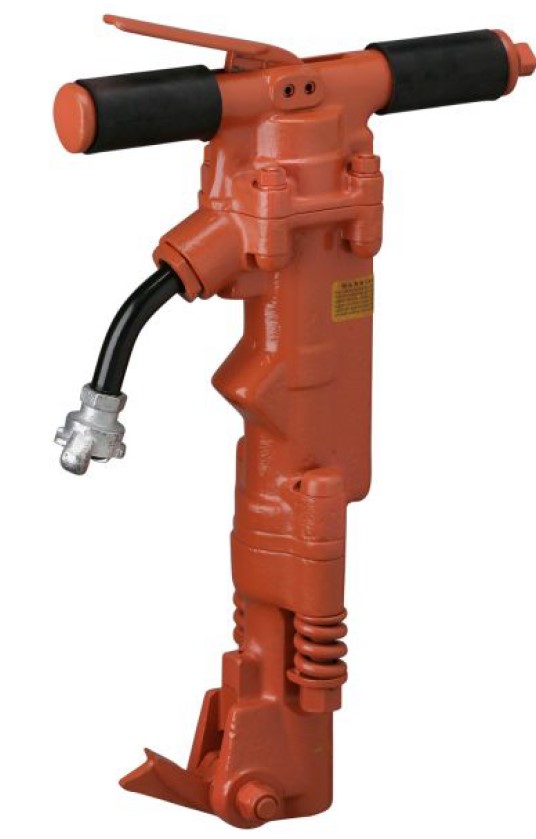

APT 140 Pneumatic Paving Breaker - 1 x 4-1/4
The Model 140 is a rugged, yet lightweight Paving Breaker designed for light to medium construction work. It is ideally suited for plant maintenance, such as light demolition of floors, masonry walls, pavement, and frozen ground. This tool is also very popular for bridge deck jobs.
Features:
- Automatic valves
- Drop forged, alloy steel handle
- Built-in automatic oiler
- Rubber handle grips
- Latch type retainer
- Swivel hose connection with universal coupler
- Noise dampening mufflers available
- Four-bolt back head
Mufflers sold separately
** FREE GROUND SHIPPING WITHIN THE CONTINENTAL UNITED STATES
SPECIFICATIONS
| 17923 | $1,205.00
|
|
| Chuck Size | in | 1 x 4-1⁄4 |
| Bore | in | 1-7⁄8 |
| Stroke | in | 4-1⁄4 |
| Impact Rate | bpm | 1500 |
| Air Consumption | cfm | 48 |
| Weight | lbs | 43 |
| Length | in | 21-1⁄8 |
| Air Inlet | in | 1⁄2 Male NPT |
CONSUMABLES
DOCUMENTATION
ACCESSORIES & COMMON REPLACEABLE PARTS
| Muffler | 18099 | $213.75
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
| Latch Kit - incl. latch retainer, bolt, bushing, spring, nut, plunger and washer | 18301 | $86.96
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
| Side Kit - incl. bolt, spring, lock nut and nut | 18299 | $149.53
|
Line Oiler | LO-10PF | $81.00
|
| Hose Whip Assy (3⁄4" x 8' Hose, Univ. Fittings, 2L Line Oiler) | 19059 | $217.38
|
Whip Check | WCSML | $12.50
|
| O-Ring, Seal and Repair Kit | 18775 | $39.31
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
| Dust Control Spray Kit | 9753300015 | $139.21
|
Air King Universal Coupler | AM8 | $10.20
|
| Dust Extraction Kit for Paving Breakers & Rock Drills (incl TAM3P Pail & Vacuum Hose) | PB-RD-VDEX-KIT | $1,545.00
|
