Parts on this diagram
| Ref | Image | Part | SKU | Price |
|---|---|---|---|---|
| Cover | CP-3303005364 | $65.00 | ||
| Handle Spring | CP-3303005301 | $18.00 | ||
| Throttle Lever | CP-F814725 | $57.00 | ||
| Roll Pin | CP-R133433 | $4.00 | ||
| Spring Pin | AC-0108132200 | $2.80 | ||
| Oil Plug | CP-R075031 | $6.00 | ||
| Roll Pin | AC-0108153500 | $22.08 | ||
| Oil Regulating Plug | CP-C036901 | $21.00 | ||
| Grip - Rubber | CP-3303005276 | $9.00 | ||
| Grip - Rubber | CP-3303005307 | $34.00 | ||
| Nut | CP-0261109953 | Quote | ||
| Handle | CP-3303005281 | $107.00 | ||
| Spring Pin | CP-0108133100 | Quote | ||
| Screw | CP-0147195960 | Quote | ||
| Trigger | CP-3303005305 | $100.00 | ||
| Washer | CP-3303005311 | $16.00 | ||
| Valve Case Plug | CP-P009876 | Quote | ||
| O-Ring | CP-R049854 | $1.00 | ||
| Valve Case | CP-R047958 | $282.00 | ||
| Valve | CP-3303005327 | $102.00 | ||
| Valve Case Lid | CP-R047960 | $85.00 | ||
| Throttle Valve Seal | CP-R098368 | $2.00 | ||
| Throttle Valve Spring | CP-R005717 | $2.00 | ||
| Valve Seal Retainer Ring | CP-R098369 | $1.00 | ||
| Cylinder Seal | CP-R047965 | $2.00 | ||
| Cylinder | CP-3303005271 | $1,159.00 | ||
| Lock Washer | AC-3310105900 | $19.04 | ||
| Air Inlet Swivel Nut | AC-3310104400 | $124.65 | ||
| Screw | CP-0211171105 | Quote | ||
| O-Ring | AC-0663212600 | $8.14 | ||
| Air Inlet Swivel | CP-3303005012 | $90.00 | ||
| Piston | CP-R047967 | $168.00 | ||
| Anvil Block Bushing | CP-R047966 | $184.00 | ||
| Anvil Block | CP-R085260 | $143.00 | ||
| Label - Safety | CP-3310160200 | $3.00 | ||
| Screw - Self Tapping | CP-P081333 | Quote | ||
| Front Head Bolt | CP-R047970 | $37.00 | ||
| Buffer | CP-3303005312 | $30.00 | ||
| Front Head Lock Washer | CP-R090584 | $8.00 | ||
| Side Rod Nut | CP-R005721 | $9.00 | ||
| Nut | CP-P008999 | $5.00 | ||
| Retainer Bolt Bushing | CP-R076562 | $21.00 | ||
| Plunger Spring | CP-R086982 | $3.00 | ||
| Latch Bolt | CP-R076853 | $64.00 | ||
| Latch Retainer Plunger | CP-R092497 | $3.00 | ||
| Retainer Latch | CP-3303005365 | $123.00 | ||
| Label | CP-H4183044 | $2.00 | ||
| Label - CP Product | CP-3303005310 | $13.00 | ||
| Front Head Bushing - 1-1/4" | CP-R040635 | $118.00 | ||
| Muffler | CP-3303005319 | $470.00 | ||
| Seperation Wall | CP-3303005279 | $5.00 | ||
| Front Head Bushing - 1-1/8" | CP-R090122 | $260.00 | ||
| Seperation Wall | CP-3303005280 | $4.00 | ||
| O-Ring | AC-0663214600 | $9.75 | ||
| O-Ring | CP-0663214900 | Quote | ||
| Nut - Flange | AC-9232020750 | $2.69 | ||
| Screw - Flange | AC-0147300032 | $6.00 | ||
| Back Head - Complete | CP-3303005383 | $1,165.00 | ||
| Back Head - Complete | CP-3303005389 | $1,519.00 | ||
| Front Head - Complete 1-1/4" | CP-3303005391 | $1,202.00 | ||
| Front Head - Complete 1-1/8" | CP-3303005392 | $1,026.00 | ||

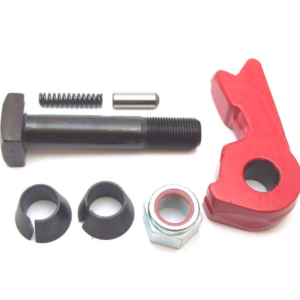

| Latch - Complete | CP-3303005388 | $176.00 | ||
| Muffler - Complete | CP-3303005386 | $553.00 | ||
| Side Bolt Kit - Steel | CP-3303005385 | $90.00 | ||
| Throttle Valve - Complete | CP-3303005379 | $123.00 | ||
| Valve Case - Complete | CP-3303005384 | $646.00 |
