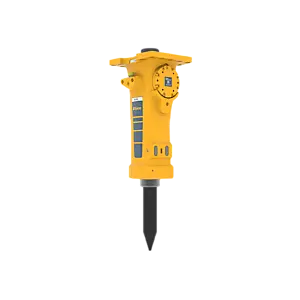

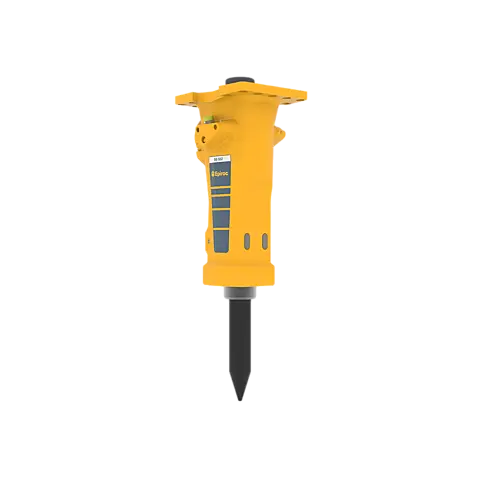

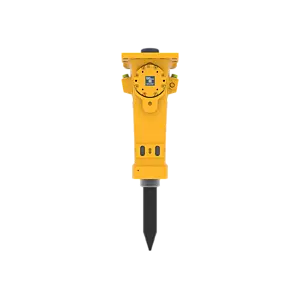

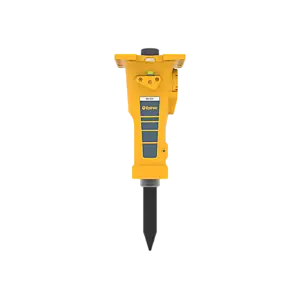

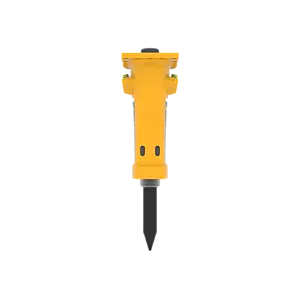

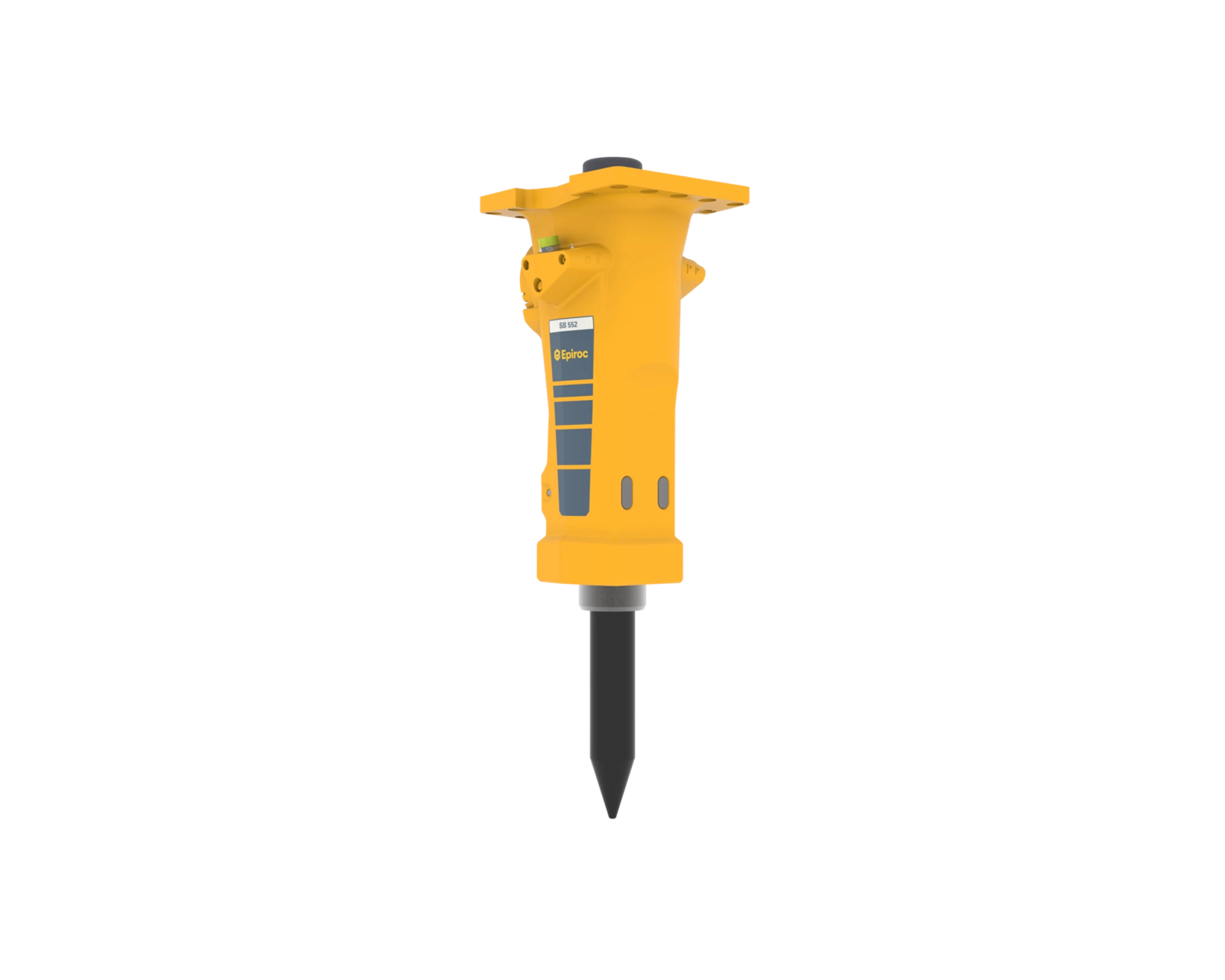

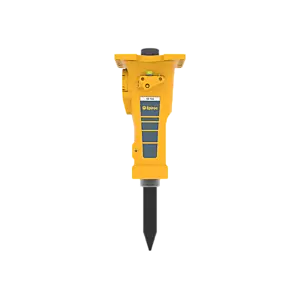

The Epiroc SB 552 is a 1,150 lb (520 kg) Solid Body hydraulic breaker for excavators and other carriers in the 19,800–33,000 lb (9–15 t) class. It swings a 3.94 in. (100 mm) working tool with 19.5 in. (495 mm) working length at 650–1,150 bpm, on 17.2–30.4 gpm (65–115 l/min) of oil flow at 1,450–2,175 psi (100–150 bar) and up to 38.6 HP (29 kW) of hydraulic input.

The Solid Body concept integrates the power cell and breaker box in one body and eliminates common parts, so the breaker is slim, compact and light for its class and suits confined work inside buildings, along walls and in narrow trenches. Energy recovery turns piston recoil into extra blow energy while lowering vibration, a maintenance-free high-pressure accumulator with patented diaphragm support keeps performance consistent, and an integrated pressure relief valve protects against overloads. The floating-fit tool bushing uses a patented tool locking system for quick on-site tool changes. Typical jobs: light concrete structures, asphalt pavement, earthworks, underground scaling and foundry ladle and converter cleaning. Moil points, chisels, blunt tools, wide chisels and asphalt cutters are under Epiroc working tools, and seal, accumulator, lower-part and label kits are linked below; keep the bushings greased with Epiroc chisel paste. See the full Epiroc hydraulic breakers range.

• Carrier weight class 19,800–33,000 lb (9–15 t); service weight 1,150 lb (520 kg)
• Working tool 3.94 in. (100 mm) diameter, 19.5 in. (495 mm) working length; floating-fit bushing with patented tool lock
• Impact rate 650–1,150 bpm; max hydraulic input 38.6 HP (29 kW)
• Oil flow 17.2–30.4 gpm (65–115 l/min); operating pressure 1,450–2,175 psi (100–150 bar); guaranteed sound power 126 dB(A)
• Energy recovery, maintenance-free high-pressure accumulator, integrated pressure relief valve; optional ContiLube II micro automatic lubrication
• Supplied as Epiroc configuration 8460030080; carrier adapter plates are carrier-specific and quoted separately; ships by $800 flat-rate Freight from Crowder Supply in Denver
