Solar Pro - Omni Adjustable Pile Driver

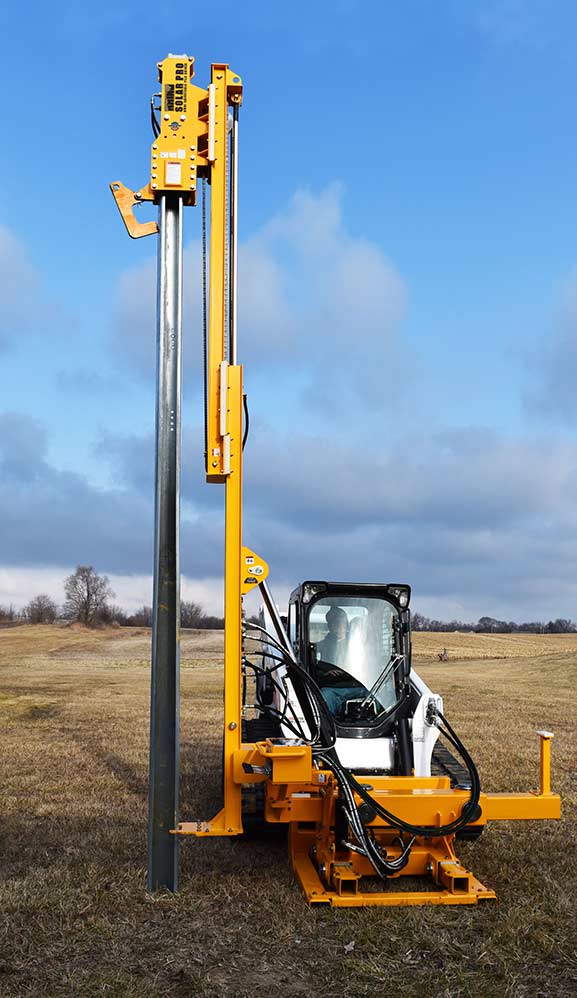

Solar Pro Pile Driver
Part | Description | Price |
---|---|---|
360001 | Solar Pro Adjustable Pile Driver | $47,900.00 Add |
The Solar Pro Pile Driver Attachment is Omni Adjustable to ensure precise, prompt, and plumb, solar pile installations regardless of the jobsite terrain. Designed to expedite the installation of solar-panel supports (piles) utilized in ground-mounted solar projects. This professional-grade skid steer attachment is designed, built, and supported in the USA to provide shorter lead-times and unmatched product support. It’s omni adjustable, powerful 800 ft. lb. (1,085 joule) hydraulic hammer safely increases jobsite productivity and profits.
FEATURES AND BENEFITS
- Accommodates solar panel supports (piles) up to 15′ (457.2 cm) tall.
- Driving Head and Bottom Guide hold each pile for efficient driving.
UTILIZE EXISTING COMPANY OWNED (OR RENTAL) HYDRAULIC OPERATED SKID STEER.
- No need for an expensive self-propelled pile driver to complete projects on-time and on-budget.
- Universal Skid Steer mounting plate for quick attachment to most units.
STATE-OF-THE-ART, FURUKAWA FX 55 HYDRAULIC HAMMER WITH 2-YEAR WARRANTY.
- Designed for efficient driving, dependability, and long life.
- Powerful 800 ft. lbs. (1,085 joules) of Impact energy per stroke (approx 1,000 blows/min.)
- New and improved piston (increased diameter and longer stroke)increases speed – Providing greater impact energy.
- Mono-block design – Reduced maintenance with only two moving parts.
THE SOLAR-PRO PILE DRIVER OFFERS AN INTEGRATED PILE PULLER WITH VIBRATORY ASSIST FOR THE TOUGHEST APPLICATIONS.
Plus, quality US materials and workmanship for dependability, low maintenance, and a long operating life.
WARRANTY – 1-YEAR ON MATERIALS AND WORKMANSHIP / 2-YEARS ON THE FURUKAWA HYDRAULIC HAMMER.
- Parts and service available throughout the USA.
- Readily available SAE fittings and hardware – Overnight shipment available on most parts.
- Hydraulic components are inventoried, or repairable by most local hydraulic repair shops.
Specifications
Unit Weight | 3,000 lbs. (1,361 kg) |
Pile Driving Impact Energy | 800 ft. lbs. (1,085 joules) Per Stroke |
Blows Per Minute | Approximately 500 to 1,000 |
Omni Directional Adjustment for positioning the pile and for uneven terrain | Mast Tilt 2 degrees left and 90 degrees right |
Mast Tilts 10 Degrees Forwards and Backwards | |
10" (25.4 cm) Front to Back Adjustment | |
24" (61 cm) Left to Right Adjustment | |
Unit Size Folded for Transportation | 6' 2" H x 3' 10" W x 11' 8" L (188 x 117 x 3556 cm) |
Maximum Pile Height | 15' (457.2 cm) Tall |
Maximum Pile Footprint | 4.5" x 6" (114.3 x 152.4 mm) Standard |
