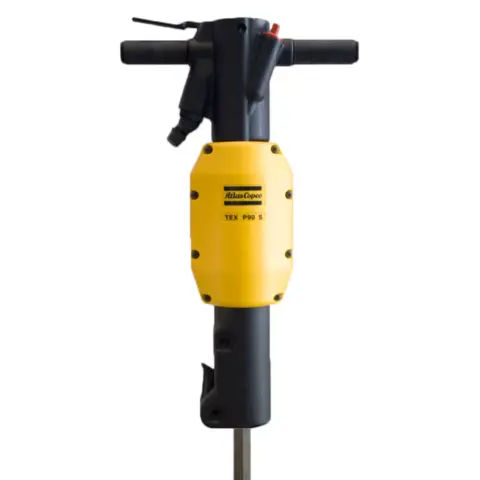

The Atlas Copco TEX 90 (TEX P90S) is the heaviest pneumatic paving breaker in the TEX line a 90 lb-class tool whose 95 lb body puts maximum per-blow energy into full-section concrete, pile-cap demolition, full-depth highway asphalt and rebar-reinforced bridge-deck work. It runs 1,260 BPM on 85 CFM at 90 psi, with a 1-3/4 in. piston working a 3-3/8 in. stroke, and stands 28 in. overall.

Chuck options in 1-1/8 x 6 in. and 1-1/4 x 6 in. hex take the moil points, chisels and cutters in our paving breaker tool steel; feeding it means a compressor with 85 CFM to spare, and our gas-driven air compressors cover that class. The TEX 90 anchors the Atlas Copco paving breaker range the paving breaker buyer’s guide shows where a 90 lb tool out-earns the 60 lb classes.

• 90 lb-class pneumatic paving breaker; 95 lb tool weight, 28 in. overall length
• 1,260 BPM impact rate on 85 CFM at 90 psi
• 1-3/4 in. piston diameter and 3-3/8 in. stroke (1-1/4 x 6 in. variant)
• Chuck options: 1-1/8 x 6 in. or 1-1/4 x 6 in. hex shank
• Sound pressure level 99 dB; guaranteed sound power level 111 dB
• Applications: full-section concrete, pile caps, full-depth highway asphalt, rebar-reinforced bridge decks
• Stocked by Crowder Supply in Denver with parts and service for pneumatic breakers in-house and free UPS Ground shipping in the lower 48

TEX 90 FAQ

Is the TEX 90 the same tool as the TEX P90S?
Yes TEX P90S is Atlas Copco’s current model designation for this 90 lb-class breaker; both names refer to the same tool.

What size compressor does the TEX 90 need?
It consumes 85 CFM at 90 psi, so plan on a compressor with at least that much spare capacity the air compressor buyer’s guide walks through sizing for single- and multi-tool circuits.

What steel does the TEX 90 take?
It is offered with a 1-1/8 x 6 in. or 1-1/4 x 6 in. hex chuck, so it runs standard paving-breaker moil points, chisels and cutters in the matching shank size.
