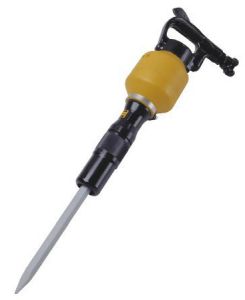

TEX 09PS & 12PS Pick Hammer
Low Weight - High Productivity
Fitted with D-type handles, machines in the TEX 09 and TEX 12 series are the lightest and most productive medium-weight pick hammers in their class.
...With the Reliability You Need
TEX 09 and TEX 12 pick hammers are extremely reliable machines. Available in a variety of models, they go on giving the same high level of performance under the toughest conditions.
Wide Range of Choices
There are several versions to choose from, making it possible to cater to the needs in many different applications. All versions are silenced.
SOFSTART Trigger
The TEX 09 and TEX 12 comes with a special two-step trigger that makes the job easier by giving you full chisel control.
Applications
- Light-duty chipping and scaling work
- Renovation and conversion work
- Demolition
** FREE SHIPPING within the Continental United States
SPECIFICATIONS
| Description | TEX 09PS | TEX 09 PS KL | TEX 12PS | TEX 12PS KL | |
| Hammer Type | Pick Hammer | Pick Hammer | Pick Hammer | Pick Hammer | |
| Hammer Version | Silenced | Silenced | Silenced | Silenced | |
| Tool Retainer | Cap | Latch | Cap | Latch | |
| Claw Coupoing Included | No | No | Yes | No | |
| Weight | lbs | 22 | 22 | 25 | 25 |
| Length | in | 20 | 20 | 20 | 20 |
| Air Consumption | cfm | 39 | 39 | 47 | 47 |
| Impact Rate | bpm | 1800 | 1800 | 1800 | 1800 |
| Vibration Level 3 Axes (ISO 28927-10) | m/s2 | 16.1 | 16.1 | 16.1 | 16.1 |
| Sound Power Level Guaranteed, Lw (2000/14/EC) | dB(A) | 103 | 103 | 103 | 103 |
| Sound Pressure Level (ISO 11203) Lp, r=1m | dB(A) | 91 | 91 | 91 | 91 |
| Shank Size | in | 7⁄8 x 3-1⁄4 | 7⁄8 x 3-1⁄4 | 7⁄8 x 3-1⁄4 | 7⁄8 x 3-1⁄4 |
| Part No | AC-8461021102 | AC-8461021106 | AC-8461021127 | AC-8461021116 | |
$945.00
|
$945.00
|
$1,135.00
|
$1,135.00
|
CONSUMABLES
DOCUMENTATION
| Spare Parts List - TEX09 |
| Spare Parts List - TEX12 |
| Safety and Operating Instructions |
ACCESSORIES & COMMON REPLACEABLE PARTS
| VAM01 US Water Separator | 8092011059 | $267.83
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| VAM5A US Water Separator | 8092011083 | $1,516.87
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
|
| TEX09 Repair Kit | 3310120790 | $61.79
|
Whip Check | WCSML | $12.50
|
|
| US Claw Coupler | 9246020439 | $9.36
|
Contractors Air Hose | AIRH-19-50R | $124.00
|
|
| Whip Hose Assy w/ 3.7oz Lubricator | TX7HW | $99.10
|
Air King Universal Coupling | AM8 | $10.20
|
|
| Whip Hose Assy w/ 11oz Lubricator | TX12HW | $134.25
|
||||
| Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills | PB-RD-VDEX-KIT | $1,545.00
|
Dust Control Spray Kit | 9753300015 | $146.87
|
