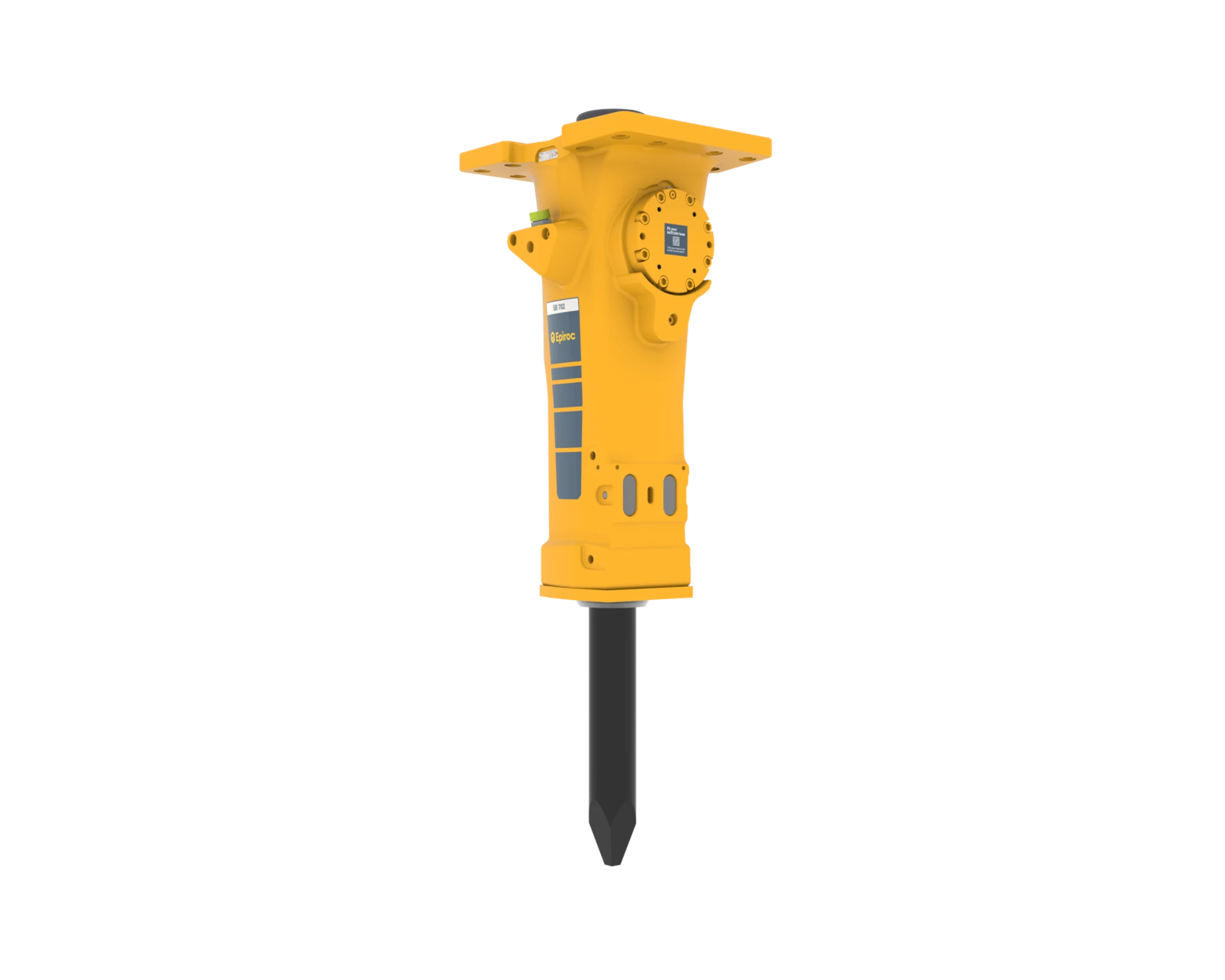

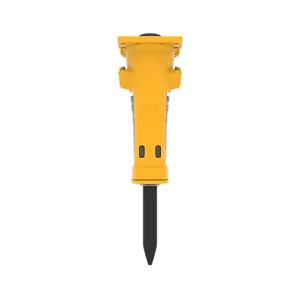

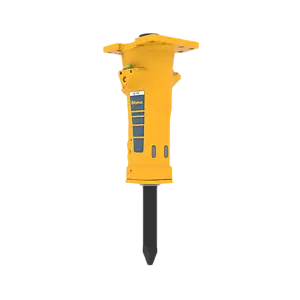

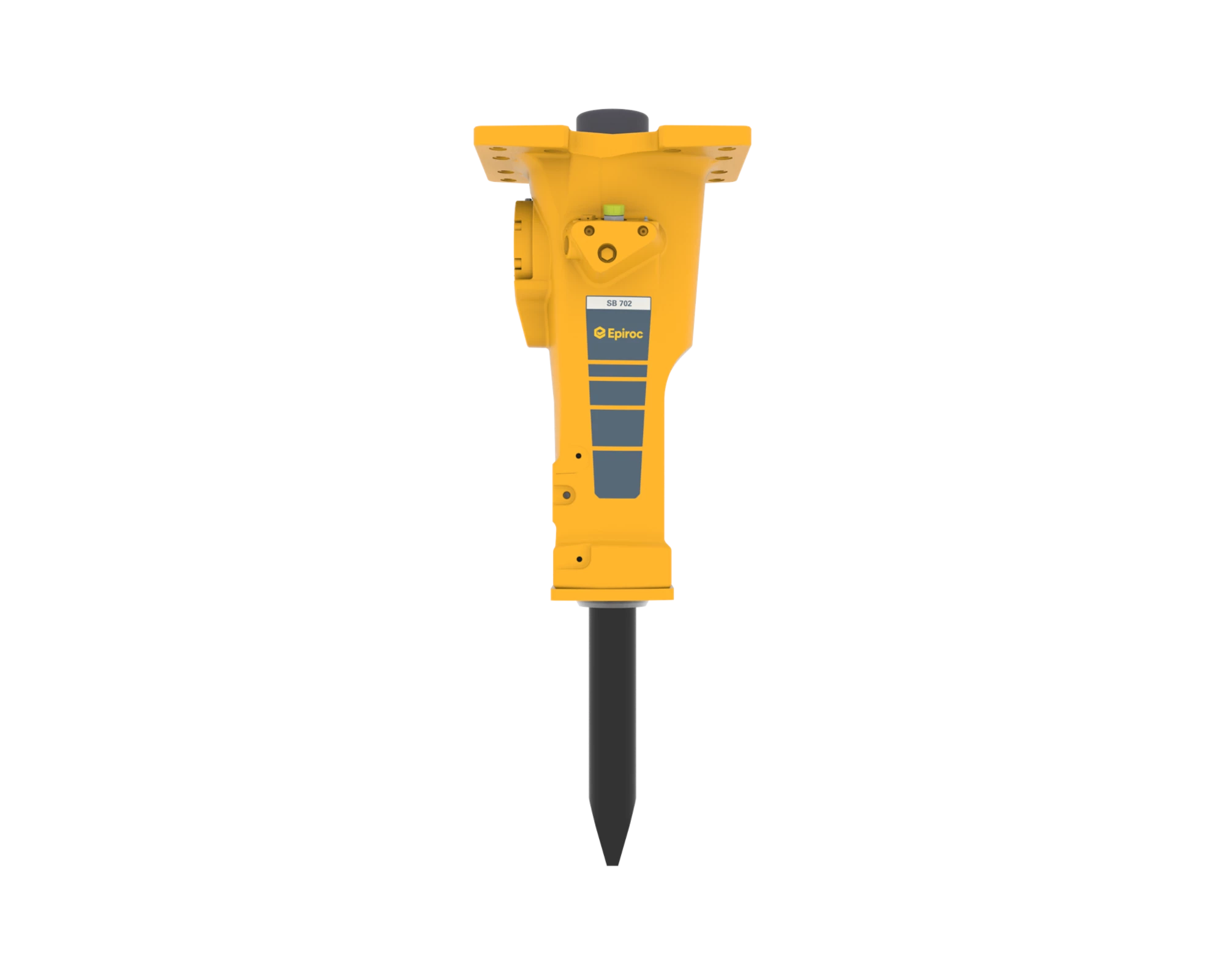

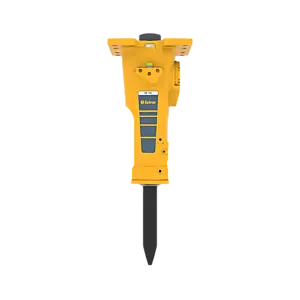

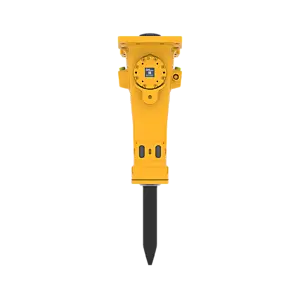

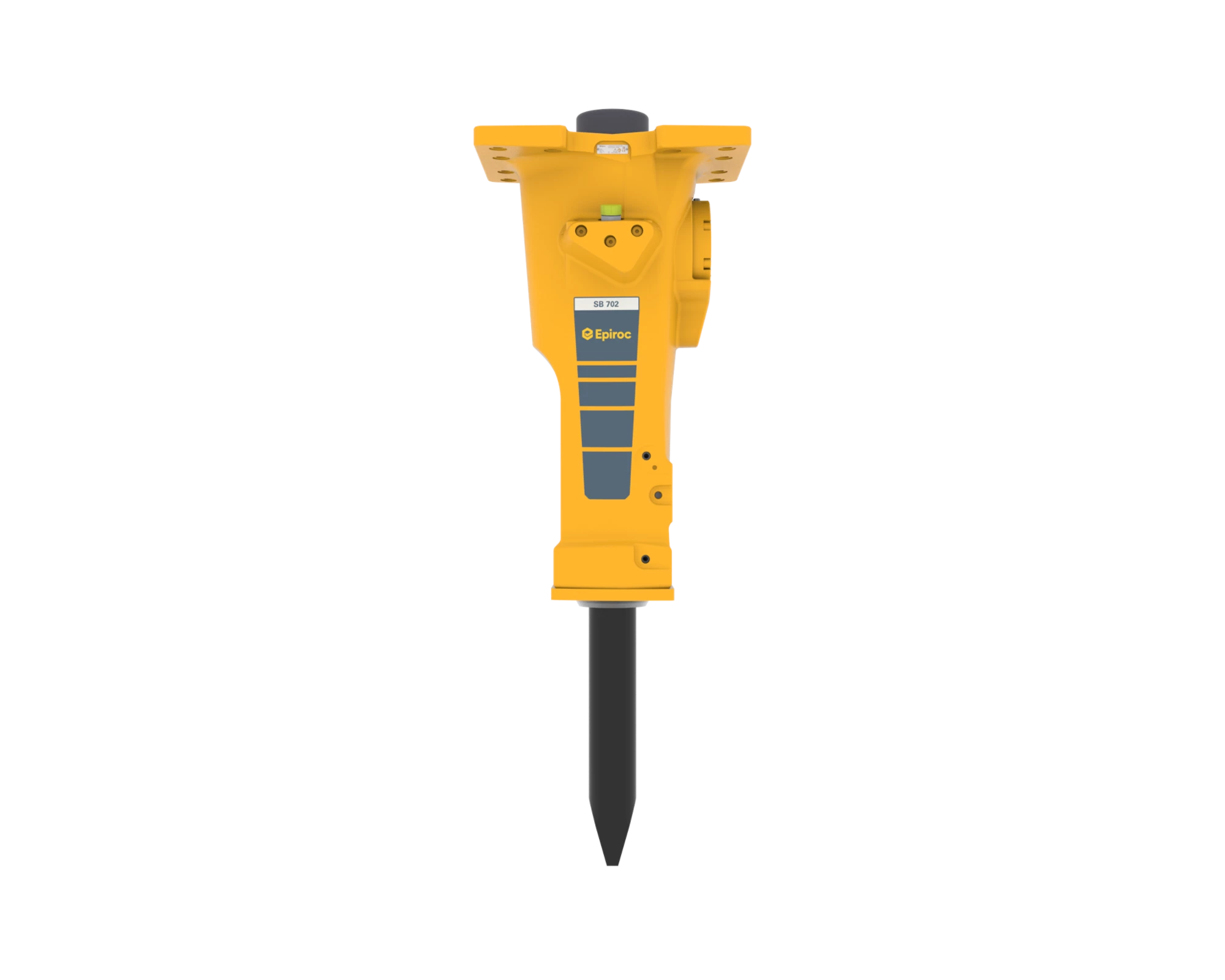

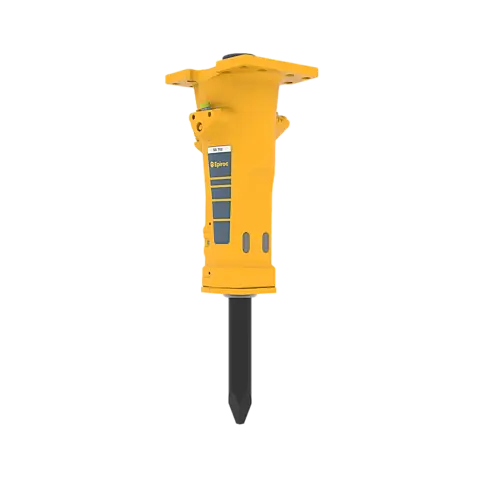

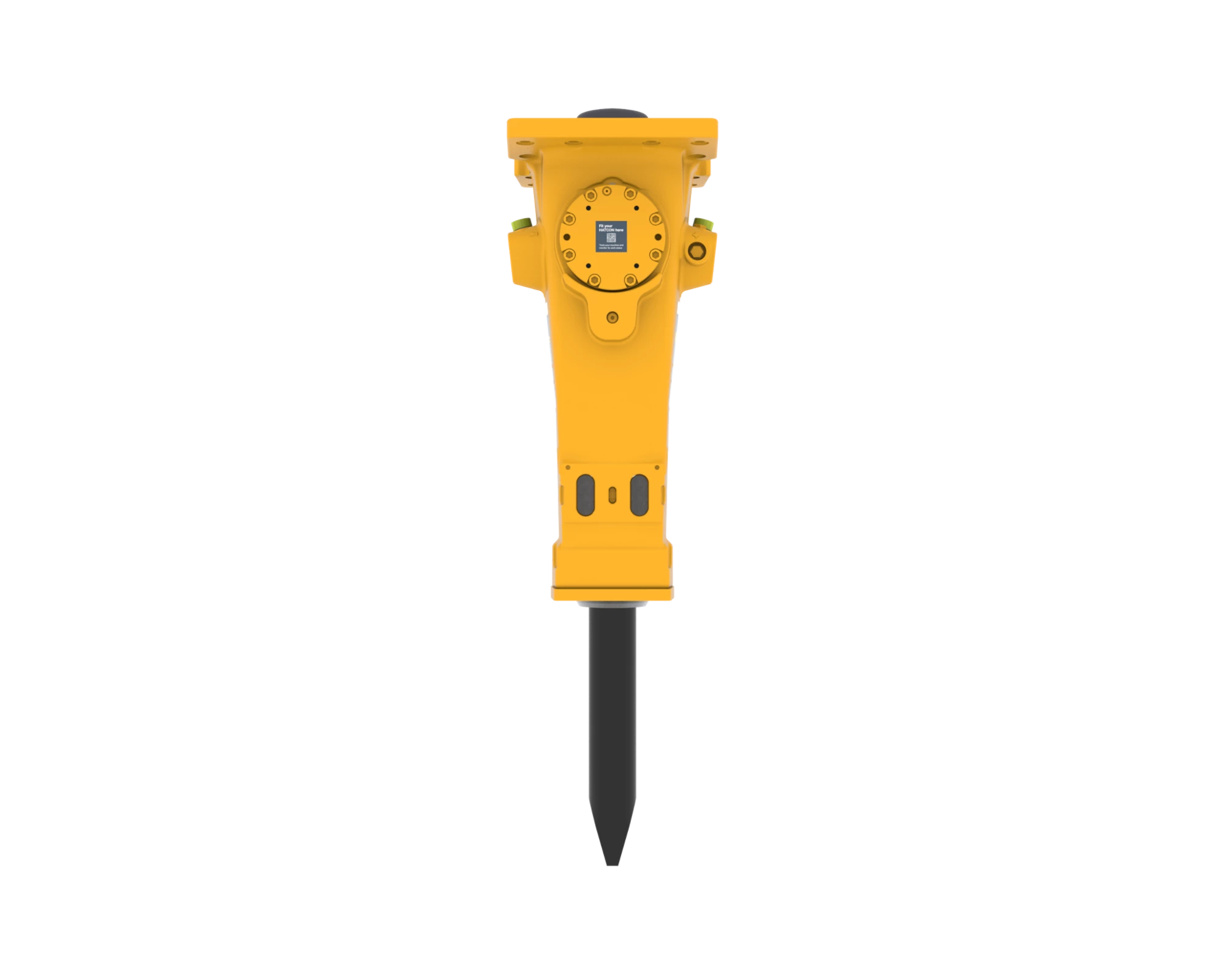

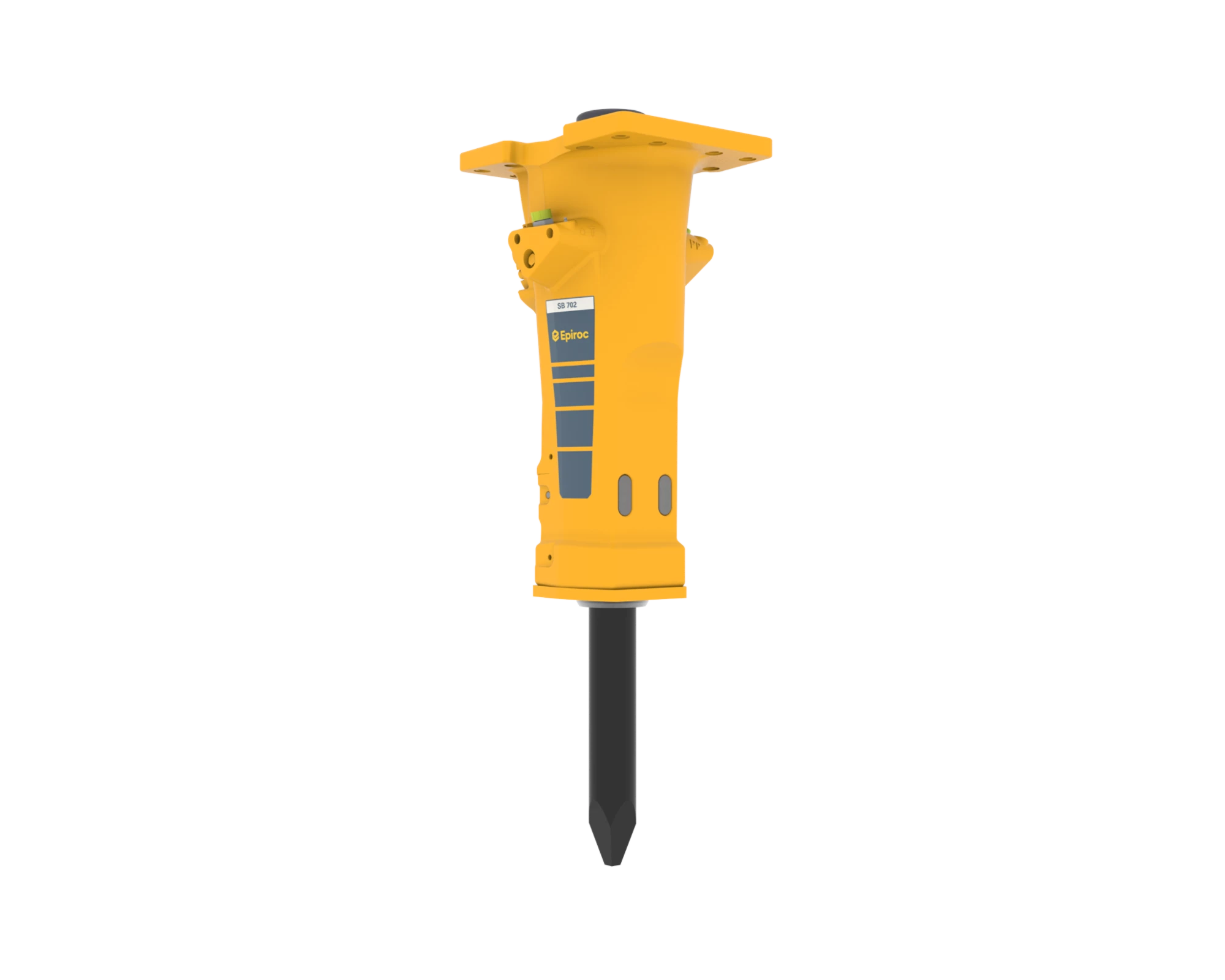

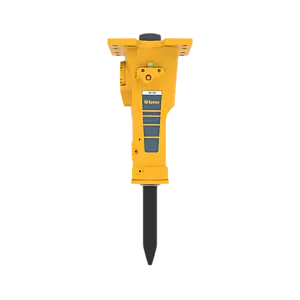

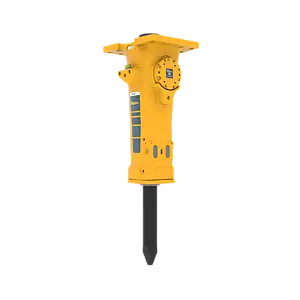

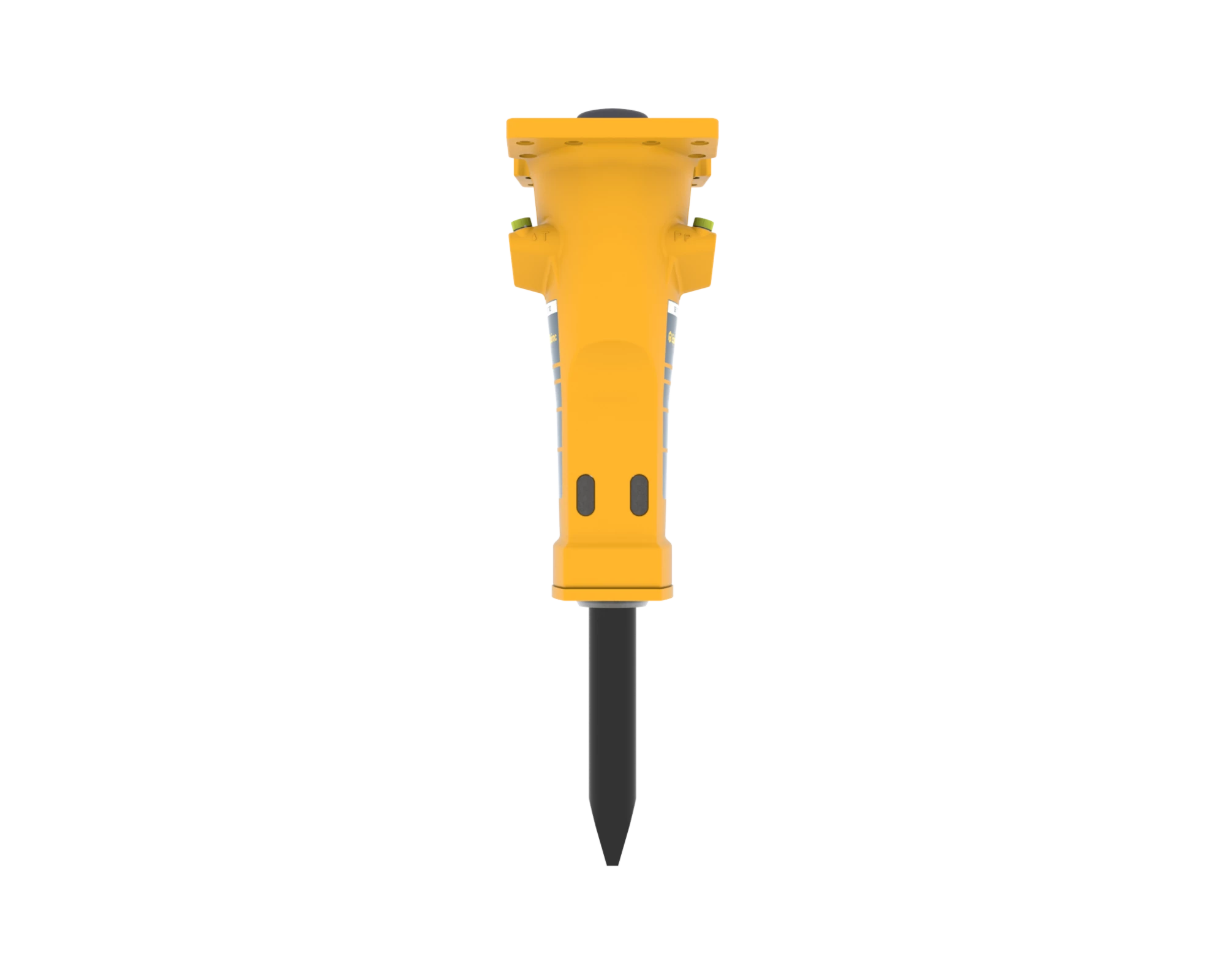

The Epiroc SB 702 is a 1,600 lb (720 kg) Solid Body hydraulic breaker for excavators and other carriers in the 22,000–37,500 lb (10–17 t) class. It swings a 4.13 in. (105 mm) working tool with 20.5 in. (520 mm) working length at 600–1,050 bpm, on 21–32 gpm (80–120 l/min) of oil flow at 1,740–2,465 psi (120–170 bar) and up to 45.6 HP (34 kW) of hydraulic input.
The Solid Body concept integrates the power cell and breaker box in one body and eliminates common parts, so the breaker is slim, compact and light for its class and suits confined work inside buildings, along walls and in narrow trenches. Energy recovery turns piston recoil into extra blow energy while lowering vibration, a maintenance-free high-pressure accumulator with patented diaphragm support keeps performance consistent, and an integrated pressure relief valve protects against overloads. The floating-fit tool bushing uses a patented tool locking system for quick on-site tool changes. Typical jobs: light concrete structures, asphalt pavement, earthworks, underground scaling and foundry ladle and converter cleaning. Moil points, chisels, blunt tools, wide chisels and asphalt cutters are under Epiroc working tools, and seal, accumulator, lower-part and label kits are linked below; keep the bushings greased with Epiroc chisel paste. See the full Epiroc hydraulic breakers range.
- Carrier weight class 22,000–37,500 lb (10–17 t); service weight 1,600 lb (720 kg)
- Working tool 4.13 in. (105 mm) diameter, 20.5 in. (520 mm) working length; floating-fit bushing with patented tool lock
- Impact rate 600–1,050 bpm; max hydraulic input 45.6 HP (34 kW)
- Oil flow 21–32 gpm (80–120 l/min); operating pressure 1,740–2,465 psi (120–170 bar); guaranteed sound power 122 dB(A)
- Energy recovery, maintenance-free high-pressure accumulator, integrated pressure relief valve; optional ContiLube II automatic lubrication
- Supplied as Epiroc configuration 8460030085; carrier adapter plates are carrier-specific and quoted separately; ships by $800 flat-rate Freight from Crowder Supply in Denver
